Mold table vibrating device for prefabricated part and using method of mold table vibrating device
(10) CN118493559
(22) 20.06.2024
(43) 16.08.2024

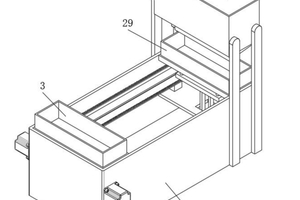

(57) The invention relates to the technical field of mold table vibration, and discloses a mold table vibration device for a prefabricated part and a using method thereof. The mold table vibration device comprises a frame body and further comprises a discharging assembly arranged above the frame body and used for providing raw materials; the first mold table is arranged on the top surface of the frame body in a sliding mode, and the first mold table is used for receiving raw materials provided by the discharging assembly; the second mold table is arranged in the frame body in a sliding manner; the up-down moving assembly is arranged in the frame body; and the conveying assembly is arranged in the frame body. The first mold table and the second mold table can be alternately used, so that concrete vibration is more efficient, concrete in the mold tables can be automatically vibrated in the process that the mold tables move after bearing the concrete, an additional driving assembly is not needed, in addition, through arrangement of a limiting channel, the first mold table and the second mold table alternately vibrate stably, and the working efficiency is improved. And the use effect of the equipment is improved.
(71) Shandong Huidaruihe Building Material Technology Co., Ltd., CN
