Assembly type concrete prefabricated part forming device
(10) CN119795328
(22) 17.02.2025
(43) 11.04.2025

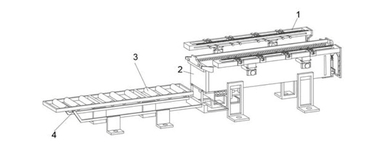

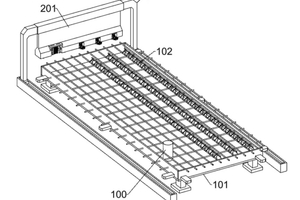

(57) The invention relates to the technical field of building construction, in particular to an assembly type concrete prefabricated part forming device. The technical problem to be solved by the invention is that concrete is inconvenient to vibrate and stricken during production of prefabricated balcony slabs in the prior art. Comprising a portal frame, a forming mold is arranged on the lower side of the portal frame, a plurality of trusses are placed in the forming mold, the switching mechanism comprises a scraper, and the scraper is installed on the portal frame. Through the design of the switching mechanism, in the horizontal movement process of the floating frame, a first elastic wedge-shaped block and a second elastic wedge-shaped block are in contact with a truss, and a third elastic wedge-shaped block is matched with a V-shaped plate, so that the I-shaped plate can move rapidly after the I-shaped plate moves slowly for a short time, and then the floating frame keeps moving synchronously with a scraper blade; and through the design of the floating frame, the concrete in the truss can be scraped by the floating frame, so that the forming quality of the concrete prefabricated part is improved.
