Cutting device for concrete block processing
(10) CN120170901
(22) 22.05.2025
(43) 20.06.2025

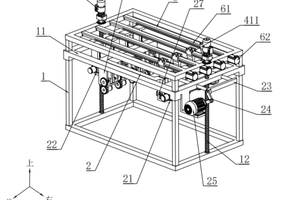

(57) The invention provides a cutting device for concrete block machining, and belongs to the technical field of concrete block machining, the cutting device comprises a rack, a lifting frame and a cutting wire, the rack is provided with a lifting assembly used for driving the lifting frame to move up and down, the lifting frame is provided with a movable frame, and the two sides of the bottom of the movable frame are provided with a pay-off assembly and a take-up assembly respectively; the lifting frame is used for installing a cutting wire, a first clamping piece and a second clamping piece which are used for fixing the cutting wire are arranged between the pay-off assembly and the take-up assembly, a driving assembly used for driving the movable frame to reciprocate is arranged on the lifting frame, and a connecting piece capable of being locked with the movable frame is arranged at the top of the second clamping piece. According to the device, through cooperation of the take-up and pay-off assembly and the wire fixing structure, the working area of the cutting wire is regularly adjusted in the cutting operation, the service life is prolonged, the maintenance cost is reduced, when the cutting wire is accidentally broken, manual work can be replaced for installing and fixing the cutting wire, and the production continuity is guaranteed.
(71) Zibo Fuyuan Building Material Co., Ltd.; Xichuan Xishui New Building Material Technology Co., Ltd.
