Lifting device for prefabricated concrete outer wallboard and lifting method of lifting device
(10) CN107673185
(22) 20.10.2017
(43) 09.02.2018

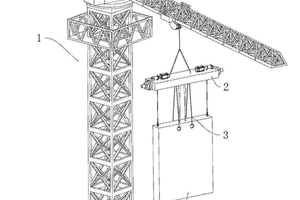

(57) The invention discloses a lifting device for a prefabricated concrete outer wallboard and a lifting method of the lifting device and solves the problem of infirm lifting of outer wallboards in the prior art. According to the technical scheme, the lifting device for the prefabricated concrete outer wallboard is characterized by comprising a transverse lifting beam and first lifting chains fixed atthe lower end of the transverse lifting beam and further comprises no less than two groups of lifting assemblies matched with the first lifting chains to lift the prefabricated concrete outer wallboard; each lifting assembly comprises a metal pipe embedded in the upper end of the prefabricated concrete outer wallboard and a supporting block mounted on the inner side of the pipe wall of the metal pipe, the corresponding first lifting chain penetrates through the metal pipe, a supporting groove allowing the first lifting chain to penetrate is formed in the supporting block, and the bottom surface of the supporting groove is a downwards-bulging arc surface. By the aid of the lifting device for the prefabricated concrete outer wallboard, the prefabricated concrete outer wallboard is lifted more safely and firmly.
(71) Zhejiang Xiaoyun Construction Co. Ltd.
