Aerated concrete block pouring device
(10) CN119952812
(22) 07.04.2025
(43) 09.05.2025

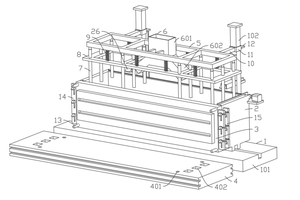

(57) The invention relates to an aerated concrete block pouring device, and belongs to the technical field of aerated concrete block processing equipment. The device comprises a working support, a pouring box with an opening in the top end is mounted on the working support, a grouting mechanism and a vibrating mechanism which can move up and down are arranged above the pouring box, the vibrating mechanism comprises a mounting frame and a plurality of vibrating rods mounted at the bottom of the mounting frame, and a scraper is arranged below the mounting frame; the outer sides of the vibrating rods are sleeved with the scraper in an up-down sliding mode, an elastic piece I is connected between the scraper and the installation frame, a sliding stop block is horizontally, elastically and slidably installed on the working support, the sliding stop block is located above the pouring box and is in up-down stopping with the scraper, a pushing inclined face is arranged at the top of the sliding stop block, and the sliding stop block is in transmission connection with the installation frame. Slurry attached to the outer side of the vibrating rod can be cleaned in time, and a series of adverse effects caused by the fact that concrete slurry is attached to the outer side wall of the vibrating rod are avoided.
(71) Zibo Zhongpeng Environmental Protection Technology Co., Ltd., CN
