A new frontier in concrete acceleration

The ongoing transition toward low-clinker cements represents a major step forward in reducing the environmental impact of concrete production, particularly through the significant reduction of CO₂ emissions associated with traditional clinker manufacturing. However, this transition introduces important technical and operational challenges for the precast concrete industry, where rapid strength development, short demolding times, and high production efficiency are essential for maintaining competitiveness and reliability.

The incorporation of supplementary cementitious materials (such as ground granulated blast furnace slag, fly ash, limestone fillers, or calcined clays) and the consequent reduction in clinker content often result in slower hydration kinetics and delayed early-age strength development. These effects can negatively influence production cycles and process stability within precast plants.

To successfully address these challenges, innovative technological solutions are required that can restore or enhance early-age performance while preserving the sustainability benefits of low-clinker systems. In this context, advanced admixture technologies play a crucial role in enabling precast manufacturers to maintain productivity without compromising mechanical performance or durability.

Building on more than a century of experience in concrete admixture development, Master Builders Solutions has continuously supported the evolution of the precast industry. The introduction of the Master X-Seed technology and the Crystal Speed Hardening concept in 2009 established a new benchmark for accelerating cement hydration and improving early strength development.

As concrete formulations continue to evolve toward lower clinker contents, the development of a new generation of acceleration technologies becomes essential to meet emerging performance requirements. Overall, the successful implementation of low-clinker concrete mixes in precast applications will depend on the combined optimization of binder systems, admixture technologies, and operational processes.

Through continued innovation and close collaboration with precast producers, it is possible to achieve a balanced solution that simultaneously meets sustainability goals, industrial efficiency, and long-term concrete performance.

What’s next in Concrete Acceleration?

Master Builders Solutions, a global innovation leader in concrete admixture technology, launches a new advanced acceleration package designed to maximize early strength development in modern concrete mixes. The solution combines three powerful technologies that work individually or synergistically to unlock superior results. The system comprises the following new products:

MasterCO₂re HES 30:

A next-generation accelerating superplasticizer that integrates the advanced performance of MasterCO₂re (Intelligent Cluster System Technology) with Master X-Seed (Crystal Speed Hardening Technology) in a single product. MasterCO₂re HES 30 delivers water reduction while accelerating early strength development, enabling faster construction cycles and improved productivity.

Master X-Seed 300 NEXT

The newest generation of hardening accelerators in the Master X-Seed family. Engineered to take early strength performance to the next level, it can be combined with MasterCO₂re HES 30 to further accelerate project timelines.

MasterBoost 3000:

An innovative strength booster specifically developed for sustainable concrete mixes with low clinker content and high levels of supplementary cementitious materials (SCMs). When used together with MasterCO₂re HES 30 or Master X-Seed 300 NEXT, MasterBoost 3000 further enhances strength development. For maximum performance, it can also be applied on top of the combined system of MasterCO₂re HES 30 and Master X-Seed 300 NEXT, fully unlocking the potential of this powerful three-component solution.

Together, these technologies form a flexible and high-performance acceleration package, enabling concrete producers to achieve faster strength gain, improved efficiency, and optimized performance in low-clinker concrete formulations.

Case Study

A comparison test was conducted in the laboratory to evaluate the acceleration performance of the new three-component package relative to a state-of-the-art admixture currently available on the market. The evaluation was performed using a precast concrete mix containing 400 kg/m³ limestone-blended cement and aggregates with a maximum size of 20 mm (Table 1).

The water-to-cement ratio was fixed at 0.44 for all mixes, while the dosage of the different admixtures was adjusted to maintain a consistent slump of 22-23 cm (Table 2).

Concrete batches were produced using raw materials conditioned at 20°C. The 10 × 10 × 10 cm concrete cubes prepared for early-strength measurements were cured both at 10 and 20°C for 20 hours.

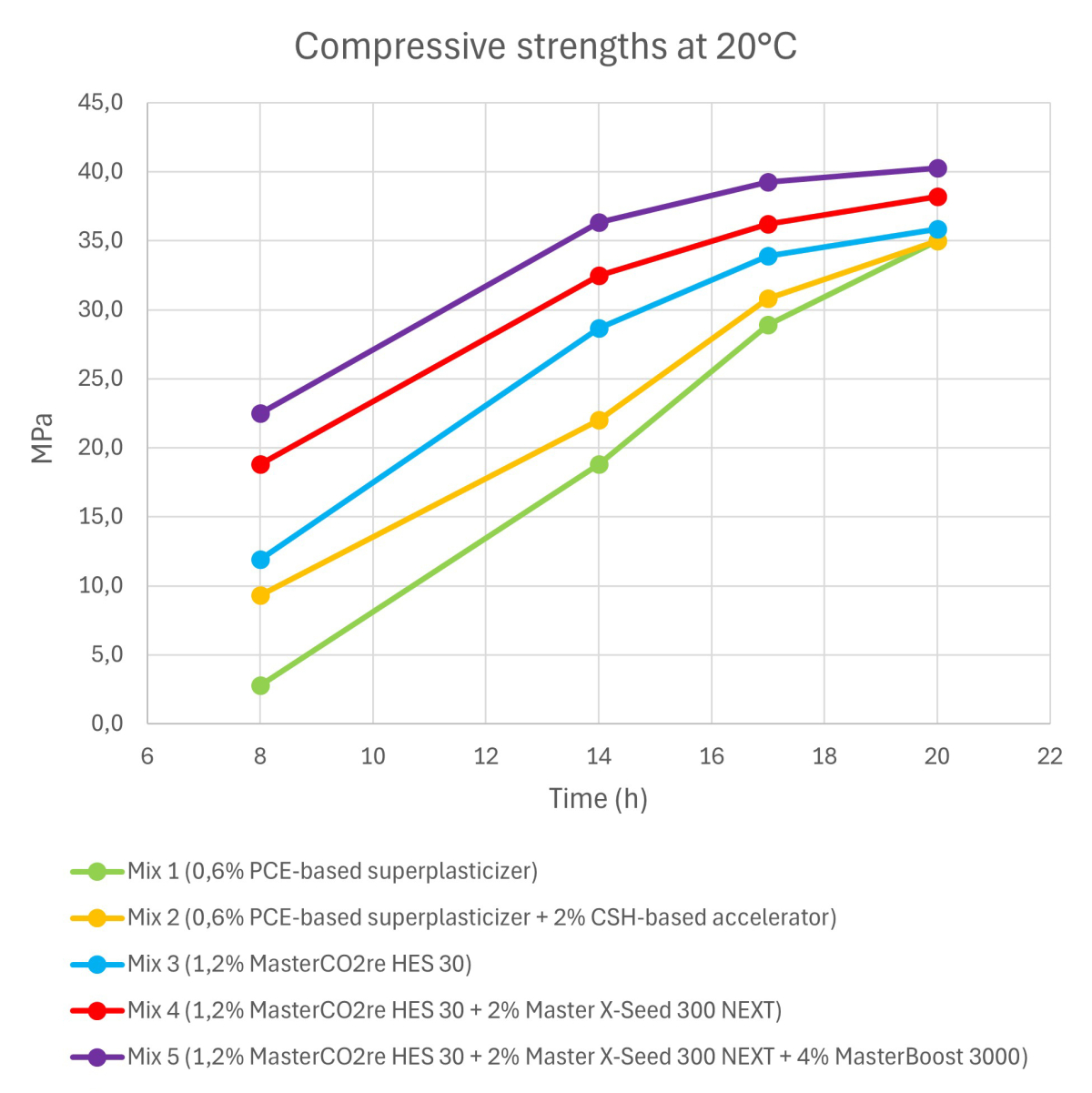

The development of early compressive strength at 10°C is reported in Figure 1, while at 20°C in Figure 2.

The early compressive strengths of Mix 3, treated with MasterCO₂re HES 30, are significantly higher than those of the concrete containing a PCE-based superplasticizer (Mix 1) and are slightly below at 10°C and above at 20°C to Mix 2 values, where a PCE-based superplasticizer is combined with a traditional CSH-based accelerator.

Notably, the dosage of MasterCO₂re HES 30 in Mix 3 is less than half of the total dosage of superplasticizer and accelerator used in Mix 2.

Mixes 4 and 5 further demonstrate that early-age strength development can be progressively enhanced by combining MasterCO₂re HES 30 with Master X-Seed 300 NEXT, or by using the complete admixture package, which includes MasterBoost 3000 as a third component.

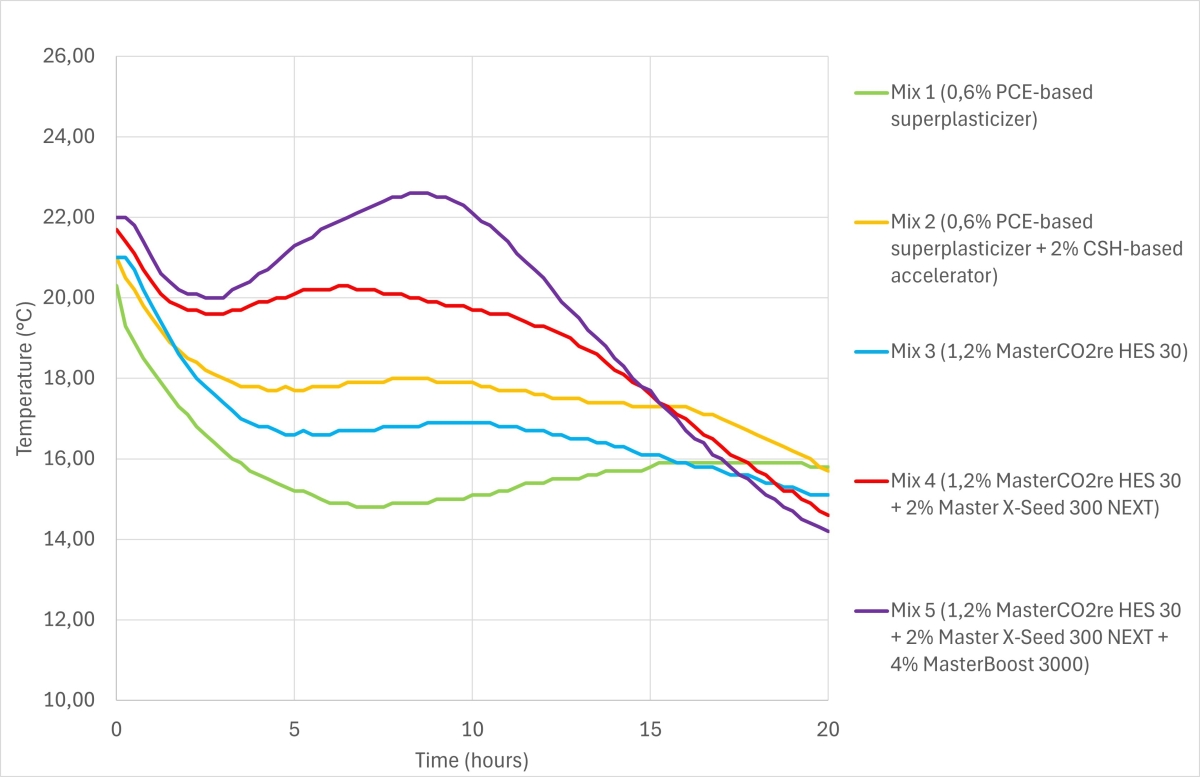

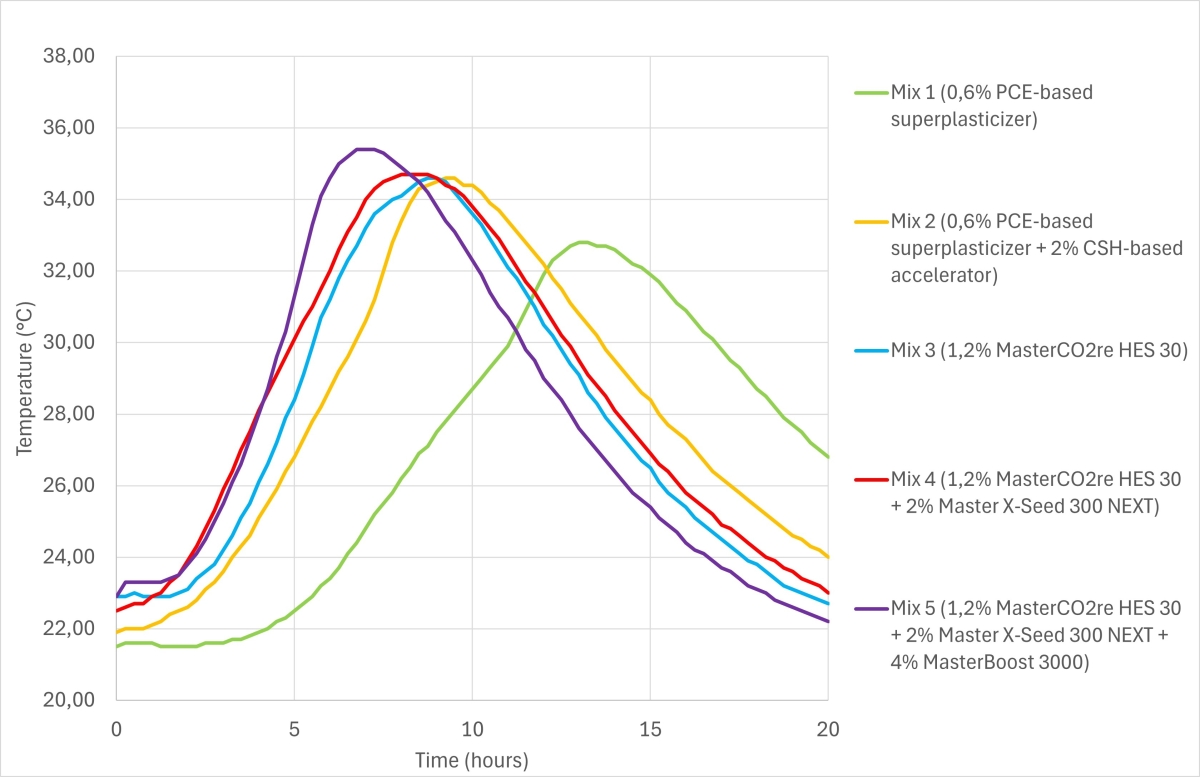

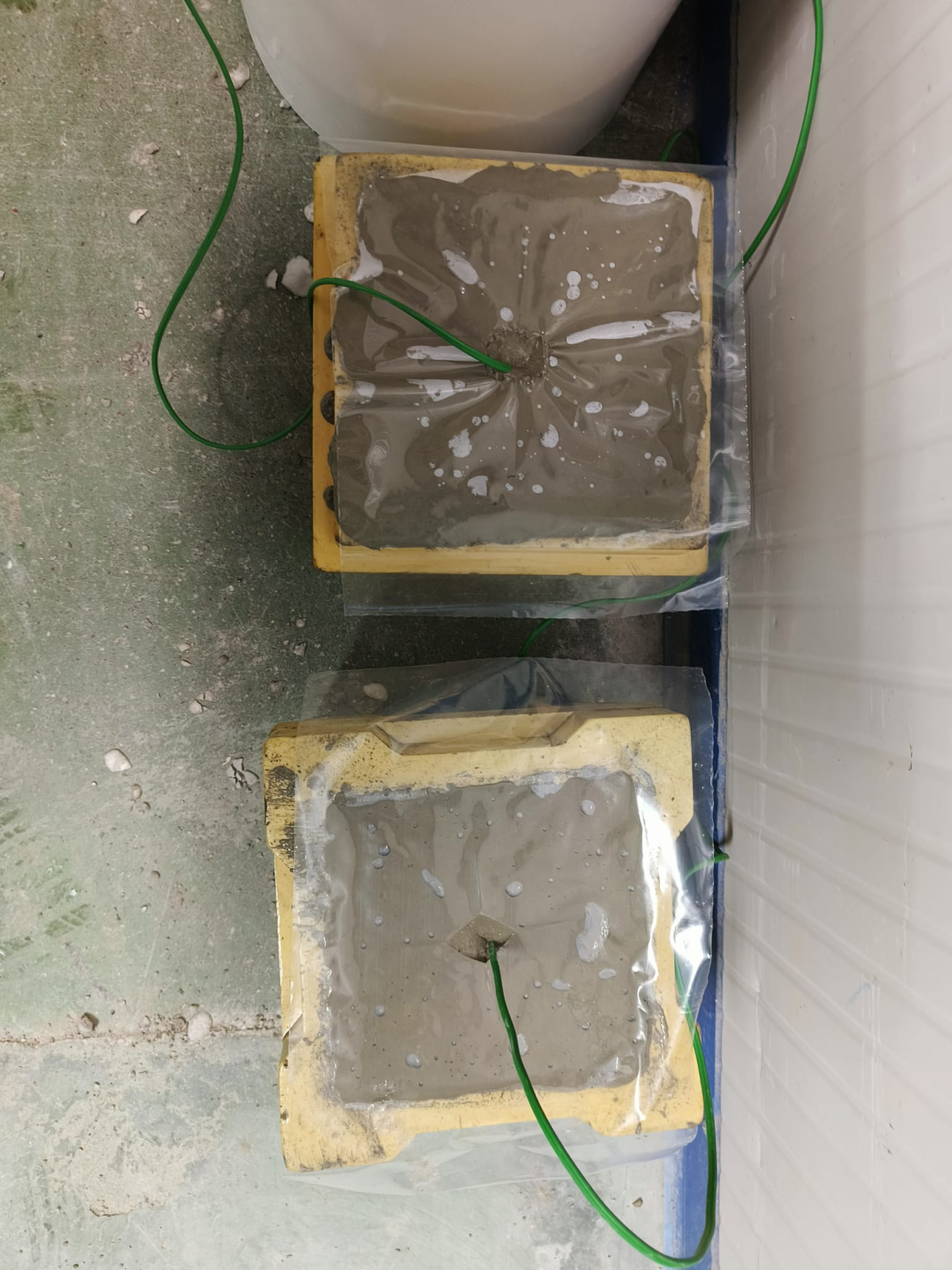

Additionally, the temperature evolution measured at both 10°C (Figure 3) and 20°C (Figure 4) curing, using 15 x 15 x 15 cm concrete cubes (Figure 5), confirms that the reaction of cement hydration can be significantly sped up by the new accelerating system.

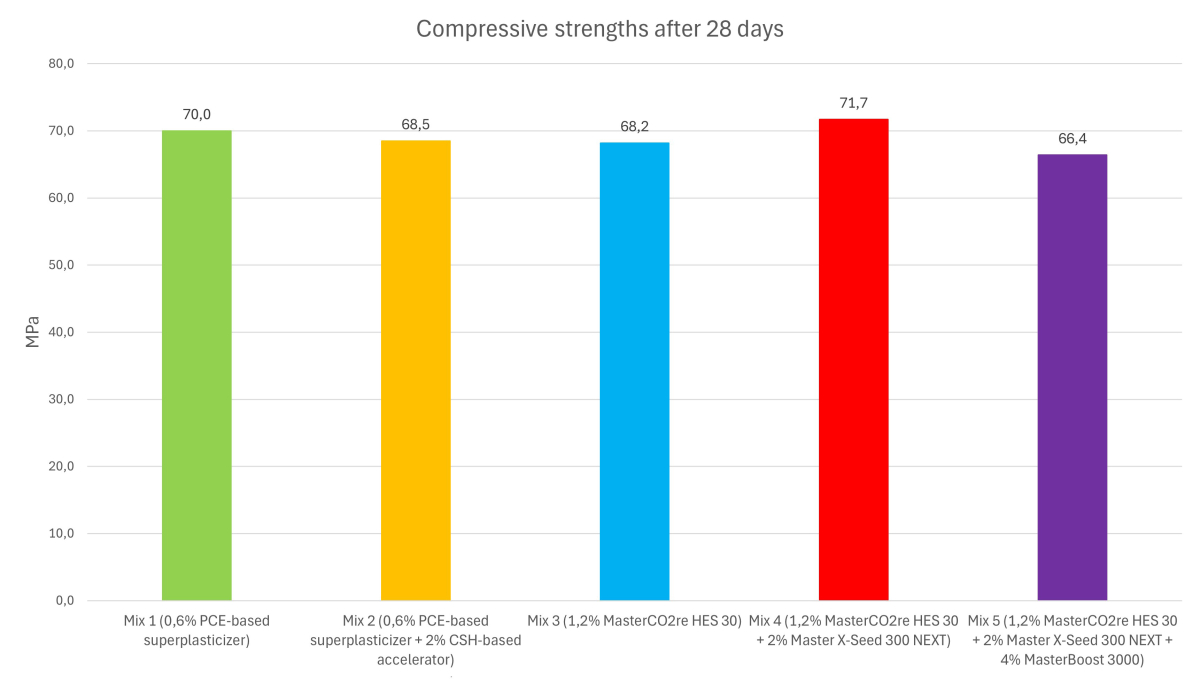

Finally, the 28-day strength values are similar across all mixes (Figure 6).

Conclusion

The precast concrete industry is living a profound transformation with the introduction of low-clinker cements. As clinker content decreases and supplementary cementitious materials (SCMs) become more widely used, maintaining rapid demolding times and reliable early-age performance becomes increasingly complex.

The results of the presented study demonstrate that advanced admixture technologies can effectively address these challenges. The new accelerating superplasticizer MasterCO₂re HES 30 shows the ability to significantly improve early compressive strength compared with conventional high-performance superplasticizers.

Furthermore, the experimental results highlight the benefits of combining MasterCO₂re HES 30 with the next-generation accelerator Master X-Seed 300 NEXT, which enables further enhancement of early-age strength development. The addition of MasterBoost 3000 as a third component allows the full potential of the system to be realized, providing a flexible and highly effective solution for accelerating hydration and improving strength development in low-clinker concrete mixes.

Importantly, these improvements in early performance are achieved without compromising long-term compressive strength, as demonstrated by the comparable 28-day strength results across all mixes. This confirms that the proposed three-component acceleration package can support faster production cycles and improved plant productivity while maintaining the structural performance required for precast applications.

Overall, the combined use of MasterCO₂re HES 30, Master X-Seed 300 NEXT, and MasterBoost 3000 provides a powerful and adaptable technological solution that enables precast producers to successfully integrate low-clinker cement systems while preserving efficiency, performance, and industrial reliability.
