How safe are sandwich anchors
according to ETA? Insights and
background into the approval process

Figure: Schöck Bauteile GmbH

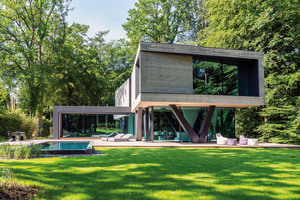

Fig. 1: Villa Neo near Hamburg built
by Querkopf Architekten in 2019

Figure: Schöck Bauteile GmbH

A valuation principle is part of every product approval. The European Assessment Document (EAD) describes the scope, the verification requirements, the test setup and the analysis of the results.

A number of test setups and their results are illustrated on the example of EAD on “Glass Fibre Reinforced Plastics (GFRP) connectors for use In sandwich and element walls made of concrete.”

Issue 10/2011 Europe-wide fixed
