Thermal break for concrete slabs
(10) US2025222624A1
(22) 08.01.2025
(43) 10.07.2025

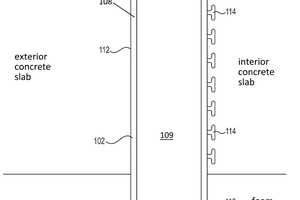

(57) A thermal break provides a break in thermal conduction between adjacent slabs of concrete. The thermal break can include a form body with a hollow center or core. The body can be an elongated hollow member in the shape of a rectangular tube that is hollow from a first longitudinal end to the opposite longitudinal end. The core can be filled with insulating foam. A plurality of concrete gripping elements such as T-shaped knobs can be provided to the long front and rear sides of the body to grip the concrete slabs adjacent to the respective front and rear sides.
(71) Streling Andrew, US
