Device for forming high-strength and high-toughness concrete product and using method thereof
(10) US12479127B1
(22) 08.07.2025
(43) 25.11.2025

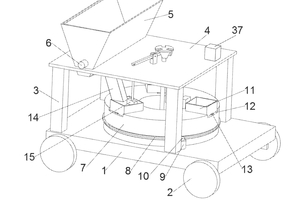

(57) A device for forming high-strength and high-toughness concrete product and a method thereof are provided. The device includes a vehicle body; a rotating disk rotatably connected to the vehicle body, a platform located above the rotating disk, and a vibration assembly. Three placement grooves are evenly spaced on a top surface of the rotating disk, and the placement grooves are used to place forming molds. The platform is fixedly connected to a storage tank, and a bottom of the storage tank is in communication with one of the forming molds in the placement grooves via a pipeline component. The platform is further provided with a thermal pressure forming component, and the platform is further provided with an ejection component. The vibration assembly includes a concrete vibrator and a lifting mechanism.
(71) Zhengzhou University; Nanjing Hydraulic Research Institute, Nanjing, CN
