Prefabricated concrete mixed component and connecting method thereof
(10) CN119777538
(22) 14.11.2025
(43) 08.04.2025

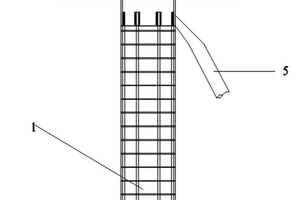

(57) The invention discloses a prefabricated concrete mixed component and a connecting method thereof. The prefabricated concrete mixed component comprises a column body unit, a column tail unit connected to the bottom of the column body unit and a column head unit connected to the top of the column body unit. The column body unit comprises column body concrete and column body vertical ribs, and the column body vertical ribs are connected with the column tail unit and the column head unit; through the arrangement of the column body unit, the column tail unit and the column head unit, standardized prefabrication based on existing construction is guaranteed, and on-site fabricated construction is facilitated; wherein the column body units can be prefabricated and manufactured in batches according to the construction height and strength, the construction quality is guaranteed, and the construction time is saved; by arranging the column head unit and the column body unit, on-site assembly is facilitated, connection joints are more stable through on-site pouring, and the structural integration is higher; through the arrangement of the extending sections of the vertical ribs, butt joint connection and fixation of the column body unit, the column tail unit and the column head unit can be guaranteed.
(71) Beijing Jinmao Pinju Construction Technology Co., Ltd.
