Concrete product compressive strength detection device

(10) CN117969293

(22) 29.03.2024

(43) 03.05.2024

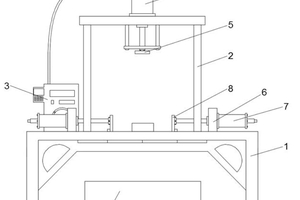

(57) The invention relates to the field of concrete production, in particular to a concrete product compressive strength detection device. Comprising a workbench and an installation frame arranged at the upper end of the workbench, a hydraulic rod is arranged at the upper end of the installation frame, the telescopic end of the hydraulic rod penetrates through the top face of the installation frame and is provided with a pressing head, a simulation assembly used for simulating the environment of a to-be-detected test block is arranged on one side of the workbench, and a bearing assembly used for bearing two to-be-detected piece detection platforms is arranged below the workbench. The device has the beneficial effects that a clamping plate is arranged to clamp and position a test block, the stability in the detection process is ensured, the simulation assembly is arranged to simulate the working environment of concrete product use and detect the strength of concrete products in different environments, ...

(71) Sanya Weiji Concrete Distribution Co., Ltd.; Hainan
Jianlong Commercial Concrete Co., Ltd., CN
