Strength detection device for fabricated concrete blocks

(10) CN117782799

(22) 19.02.2024

(43) 29.03.2024

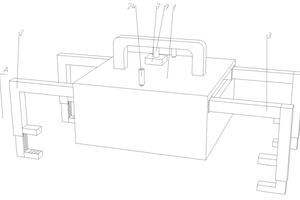

(57) The invention relates to the technical field of structural engineering, and provides an assembly type concrete block strength detection device which comprises a shell, the shell is provided with a sliding cavity, a first fixing clamping piece and a second fixing clamping piece are slidably arranged in the sliding cavity, a guide piece is provided with a horizontal guide groove and a vertical guide groove, the horizontal guide groove is a horizontal snakelike reciprocating groove, and the vertical guide groove is a vertical snakelike reciprocating groove. The vertical guide groove is a vertical snakelike reciprocating groove, the moving piece is provided with a first guide part and a second guide part, the first guide part is arranged in the horizontal guide groove in a sliding mode in the vertical direction and the horizontal direction, the second guide part is arranged in the vertical guide groove in a sliding mode, and the springback detection piece is arranged on the moving piece in a sliding mode. By means of the technical scheme, the problems that in the prior art, manual operation is needed, multiple point positions distributed in a matrix are sequentially measured, efficiency is low, and strength detection is difficult to conduct on the bent position are solved.

(71) Hebei Qilin Building Technology Development Co., Ltd., CN
