Concrete prefabricated element production system and production method

(10) CN112297210

(22) 01.08.2019

(43) 02.02.2021

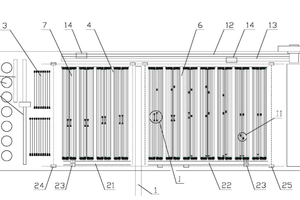

(57) The invention discloses a concrete prefabricated element production system and production method. The production system comprises a working area and a travelling crane; the middle area of the workingarea is provided with a pile outlet channel; the two sides of the pile outlet channel are provided with a first fixing die table area and a second fixing die table area; a reinforcement cage machining area and a reinforcement cage stacking area are arranged in the area from one end of the working area in the transverse direction to the first fixing die table area; a material distribution vehicle capable of reciprocating is arranged above the fixing die tables of the first fixing die table area and the second fixing die table area; at least two conveying rails which extend in the transverse direction and are parallel to each other are arranged at one side of the first fixing die table area and one side of the second fixing die table area; and each conveying rail is provided with a materialconveying vehicle which can transversely reciprocate and distribute concrete materials to the material distribution vehicle. According to the concrete prefabricated element production system and production method, the production system can run efficiently in an energy-saving, safe and time-saving mode, and the labor intensity of workers and the manufacturing cost can be reduced under the conditionthat the product quality is guaranteed.

(71) Zhou Zhaodi, CN
