Verfahren zum Herstellen eines Fertigbetonteil-Segments eines Windenergieanlagen-Turms und eine Betonfertigteil-Turmsegment-Schalung

(10) WO 2015/007656 Al

(22) 11. Juli2014 (11.07.2014)

(43) 22. Januar 2015 (22.01.2015)

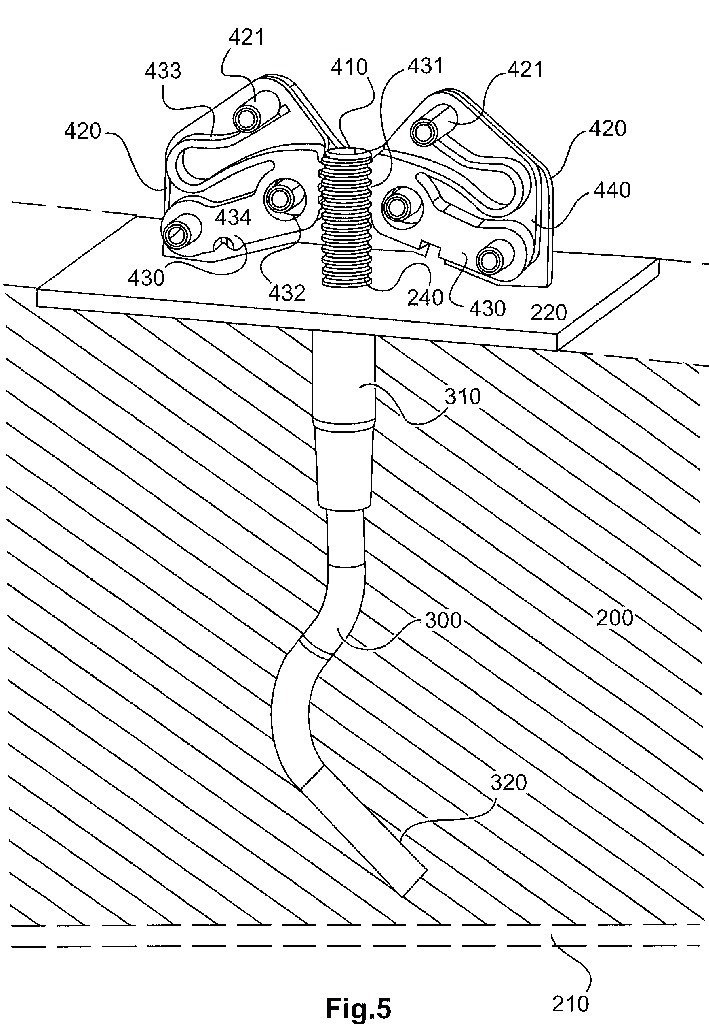

(57) A method for producing a precast concrete tower segment of a wind turbine tower is provided. An inner formwork (220) with at least one bare (240) and at least one holding unit ( 400) on an inner side of the inner formwork (220) in the region of the bare (240) is placed. A first end (31 0) of a concrete anchor (300) or a first end (31 0) of a removable element ( 41 0) at the first end (31 0) of the concrete anchor (300) is introduced from the outer side of the inner formwork (220) through the bare (240)...
