Transport and lifting device of a formwork support structure for concrete slab formworks
(10) WO2024223783A2
(22) 25.04.2024
(43) 31.10.2024

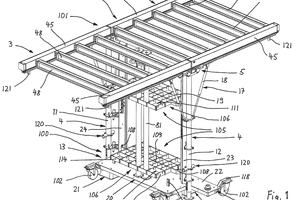

(57) The invention relates to a transport and lifting device (100) of a formwork support structure (101) for concrete slab formworks, wherein the transport and lifting device (100) has a movable base unit (13) and a lifting unit (103) which is arranged on the base unit (13) and which vertically adjustably supports the formwork support structure (101). According to the invention, the base unit (13) has a holding device (105) which contains at least one component holder (106, 143, 152) for components which, in their operating positions, complement the formwork support structure (101) in its functional position, and/or has wheel holders (116) for wheels (102) of the base unit (13) which can be removed from their operating positions, wherein all components and/or wheels (102) are arranged optionally in their resting positions on the component holder (106, 143, 152) or on the wheel holders (116) or in their operating positions.
(71) Redima AG, CN
