Fabricated concrete slab structure and construction method

(10) CN114033096 (A)

(22) 13.12.2021

(43) 11.02.2022

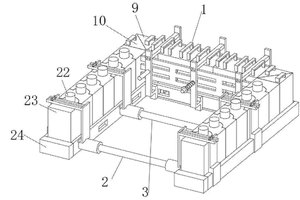

(57) The invention discloses a fabricated concrete slab structure and a construction method.The fabricated concrete slab structure comprises a concrete slab structure, a first supporting and connecting structure and a second supporting and connecting structure, and the first supporting and connecting structure is connected to the front end position of the concrete slab structure in a limiting mode, a second supporting connecting structure is connected to the position, close to the first supporting connecting structure, of the concrete slab structure in a limiting mode, the concrete slab structure comprises a top connecting part and a side connecting part, and the top connecting part is arranged at the bottom of the inner end of the concrete slab structure, the side connecting components are symmetrically and fixedly connected to the front end position of the top connecting component, the top connecting component comprises a concrete plate part and a fastening grouting device, the concrete plate part is arranged at the center position of the top connecting component, and the fastening grouting device is connected to the side end position of the concrete plate part in a limiting mode. Through the arrangement of the concrete slab structure, assembly production operation is achieved.

(71) WUHAN HOUSING CONSTRUCTION LIFE SECTION CHINA RAILWAY WUHAN BUREAU GROUP CO LTD +
