Plastic shrinkage and cracking in 3D-printed concrete
elements – mechanisms and countermeasures

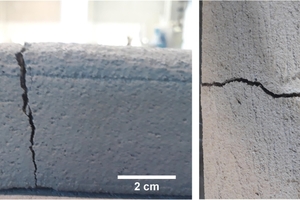

3D concrete printing has the potential to achieve a breakthrough in the construction industry. However, a number of challenges need to be overcome. An important step for transferring the 3D concrete printing technology into real-life application is to minimize and prevent the plastic shrinkage of printed concrete elements. Plastic shrinkage and the resulting formation of cracks occur at an early age of the concrete and can have negative effects on durability, fitness for use and esthetic appeal. The Figure shows the damage caused by plastic shrinkage in a 3D-printed concrete element. The reasons for an increased risk of pronounced plastic shrinkage and cracking associated with 3D printing are:

1) missing formwork to protect fresh material from water loss;

2) problems with curing;

3) use of material compositions with an increased content of powder and cement paste.

Whilst the problem of shrinkage cracking in concrete building elements manufactured using conventional construction methods has been sufficiently researched, little research has been done on the mechanisms of and measures for preventing plastic shrinkage in 3D-printed concrete building elements. In a research project, the Institute of Construction Materials, TU Dresden, is currently analyzing the mechanisms of plastic shrinkage in 3D-printed concrete structures and the resulting formation of cracks, developing new approaches for quantifying the amount of plastic shrinkage, and designing preventive measures.


Related articles:

Issue 02/2014 Causes and control

Shrinkage and cracking in high-performance concretes –

Introduction The problem of load-independent cracking in concrete members is as old as the construction method itself. Cracking is primarily caused by thermal, hygric and chemical processes as well as...

Issue 02/2019 Requirements for raw materials and materials testing

3D concrete printing

There is a rapidly growing interest in digital construction with concrete. The same holds true for the associated expectations in respect to this promising technology [1, 2]. However, a number of...

Issue 06/2022

Chemical Admixtures For 3D Printing of Concrete

Digital Manufacturing (often referred to as 3D printing) has become a standard process in numerous industries including the automotive and airline industry, in utility manufacturing or even in...

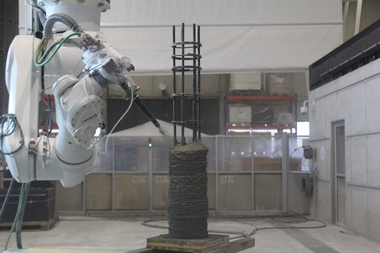

Issue 02/2020 Testing and analysis of the structural behavior

3D-printed reinforced-concrete elements

Additive manufacture (AM) and/or 3D printing with concrete represents a highly innovative and future-oriented production technology for the construction industry. For one, linkage with modern...

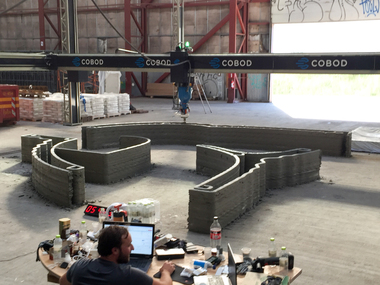

Issue 11/2019 COBOD
