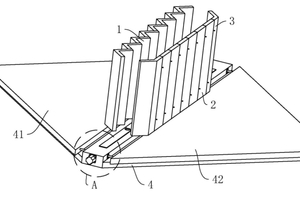

Prefabricated concrete stair forming device

(10) CN115383882

(22) 26.09.2022

(43) 25.11.2022

(57) The invention relates to a prefabricated assembly type concrete stair forming device, and belongs to the technical field of assembly type stairs, the prefabricated assembly type concrete stair forming device comprises a plurality of step modules, a plurality of bottom plate modules, two bottom plate extension blocks and a bottom die, the adjacent step modules are connected through first connecting assemblies, and the bottom plate modules are connected through second connecting assemblies; the bottom plate extending block and the bottom plate module are connected through a third connecting assembly, a first moving plate and a second moving plate are arranged on the bottom die in a sliding mode, and a first hydraulic cylinder used for pushing the first moving plate to move and a second hydraulic cylinder used for pushing the second moving plate to move are arranged in the bottom die. The method has the effects of expanding the application range of the template, improving the repeated utilization rate of the template and reducing resource waste.

(71) Nanjing Xupu Building Material Technology Co., Ltd.

x

Related articles:

Issue 08/2024

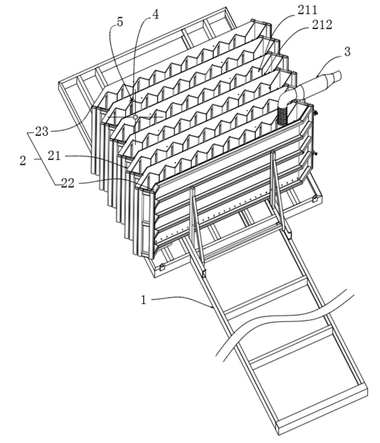

Fabricated concrete stair prefabricated part pouring production equipment

(10) CN117428903 (22) 27.09.2023; (43) 23.01.2024 (57) The invention discloses assembly type concrete stair prefabricated part pouring production equipment, and particularly relates to the technical...

more
Issue 11/2023

Prefabricated concrete bay window forming device

(10) CN114905612 (22) 11.06.2022 (43) 16.08.2022 (57) The invention relates to a precast concrete bay window forming device, and relates to the technical field of bay windows. The mounting plate is...

more
Issue 11/2024

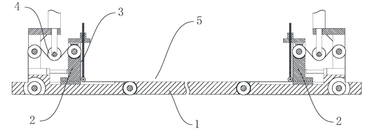

Prefabricated concrete component forming die and process

(10) CN117754700 (22) 24.01.2024 (43) 26.03.2024 (57) The concrete prefabricated part forming mold comprises a bottom plate, limiting mechanisms are arranged on the two sides of the bottom plate, and...

more
Issue 11/2023

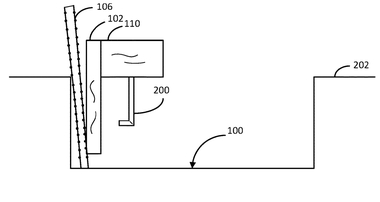

Anchorage template for building walls and method
