Device for connecting two components separated by a gap and for absorbing transverse forces that occur between the components

(10) WO 2012/025106 A2
(22) 23. Mai 2011
(43) 1. März 2012
(71) MAX FRANK GMBH & CO. KG [DE/DE]; Mitterweg I, 94339 Leiblfing (DE).

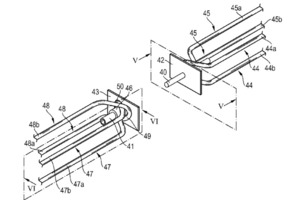

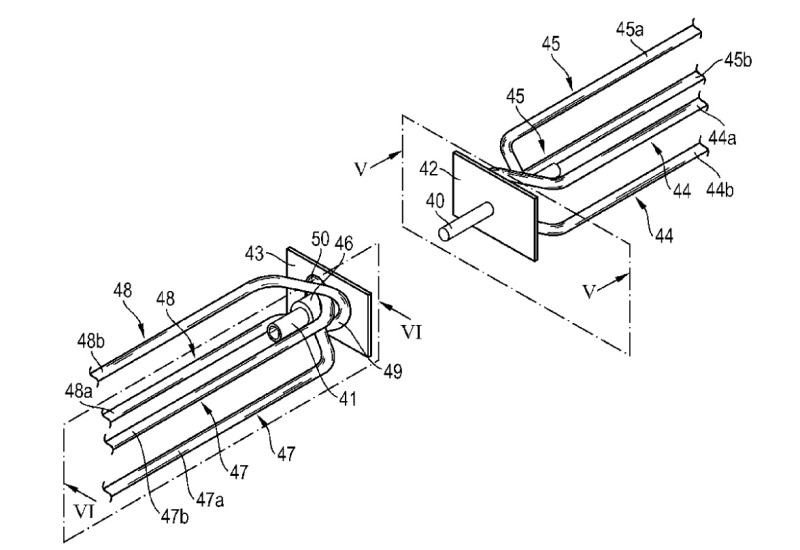

(57) The invention relates to a device for connecting two components separated by a gap, namely a pin-side component and a sleeve-side component, and for absorbing transverse forces that occur between the components, comprising a pin (40), a sleeve (41), a pin-side force deflecting element (60) that encloses the pin in a substantially positive locking manner, and at least one pin-side anchoring bow (44). The pin-side anchoring bow (44) has a loop section (10) and...
