Device for mutually connecting two parts of
road barrier and method of connecting these parts with each other

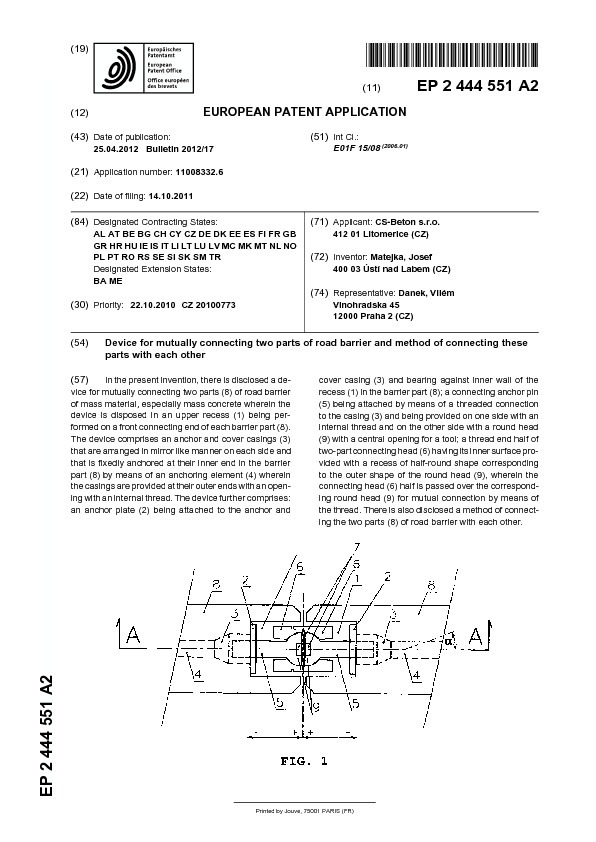

(11) EP 2 444 551 A2
(22) 14.10.2011
(43) 25.04.2012
(71) CS-Beton s.r.o., 412 01 Litomerice, CZ
(57) In the present invention, there is disclosed a device for mutually connecting two parts (8) of road barrier of mass material, especially mass concrete wherein the device is disposed in an upper recess (1) being performed on a front connecting end of each barrier part (8). The device comprises an anchor and cover casings (3) that are arranged in mirror like manner on each side and that is fixedly anchored at their inner end in the barrier part (8) by means of an anchoring element (4) wherein the...
