Insulating concrete formwork

(10) GB 2604372 A; (22) 03.03.2021

(43) 07.09.2022

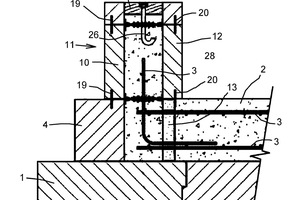

(57) An ICF structure includes a base layer (1) of thermal insulation material, a concrete slab (2) supported on the base layer, an outerwall skin (10) ofthermal insulation material located on the base layer, and an innerwall skin (12) of thermal insulation material which is spaced from the outer wall skin. The inner wall skin (12) is supported on mutually spaced I-shaped support elements (13) interposed between ...

(71) Greenraft Limited, Exeter, Devon, EX4 GAP (GB)
