Insulated Concrete Form Block, Structural Wall and Building
(10) WO2026123078A1
(22) 12.12.2025
(43) 18.06.2026

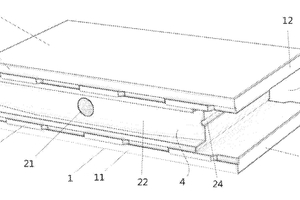

(57) The present utility model relates to an Insulated Concrete Form Block (ICFB), a structural wall, and a building, which belong to the technical fields of construction products and concrete forms. The ICFB includes surface layer structures on an inner side and an outer side and an insulated core between the surface layer structures. At a top and/or a bottom and a left end and/or a right end of the insulated core, groove structures are formed between inner side surfaces of the two surface layer structures and a surface of the insulated core. The groove structures form horizontally and vertically communicated channels with adjacent groove structures when ICFBs are in an assembled state; the channels form a concrete grid structure with specific structural strength after reinforcing steel bars are enveloped and concrete is poured.
(71) Upmarket Services Australasia Pty Ltd, 3939 Victoria, AU
