Slot drain for concrete slabs and method of forming concrete

(10) EP3601675 (A1)

(43) 05.02.2020

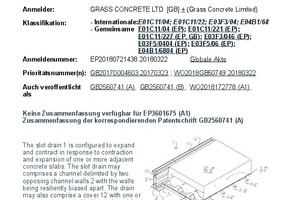

(57) The slot drain 1 is configured to expand and contract in response to contraction and expansion of one or more adjacent concrete slabs. The slot drain may comprises a channel delimited by two opposing channel walls 2 with the walls being resiliently biased apart. The drain may also comprise a cover 12 with one or more apertures provided in a rebate 14. The rebate may be provided in head pieces 10 attached to the channel walls
and is sized to provide a recess that supports the cover. There may be a filter 19 underneath the cover supported on ledges 23 on opposing channel walls or ledges extending from opposing surfaces of each head piece. The slot drain may comprise a plurality of pipes 26 attached to it. Also disclosed is a kit of parts comprising the slot drain and a mould for moulding a base of a concrete slab and a method of forming concrete paving with the slot drain.

(71) GRASS CONCRETE LTD [GB] + (Grass Concrete Limited)

(73) HOWDEN ROBERT ELLIS [GB] + (HOWDEN, Robert Ellis)

Related articles:

Issue 2018-10

(10) US 2018/0245358 Al (22) 27.04.2018 (43) 30.08.2018 (57) A method and apparatus for forming a formwork for a ribbed or waffle concrete slab is provided. The apparatus includes a rectangular block...

Issue 2014-09

(10) US 2014/0205378 Al (43) Jul. 24, 2014 (71) Harvey Hilbert Haynes, Oakland, CA (US) (22) Jan. 17, 2014 (57) An apparatus and method to install contraction joints in concrete slabs. The method...


This innovation consists of a connection and erection system on the basis of a PTA anchor channel with double T-head for solid walls and insulated wall panels. The Click Connector is preassembled in...

Issue 2012-11

Issue 2022-12

(10) US 2022/0290450 A1 (22) 05.02.2022 (43) 15.09.2022 (57) A concrete form apparatus and system for connecting opposing form sections at a desired distance from each other defining a space to...
