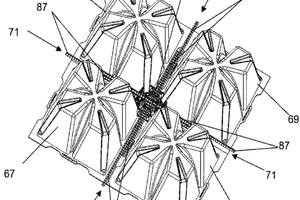

Method and apparatus for forming a formwork for a concrete slab

(10) US 2018/0245358 Al

(22) 27.04.2018

(43) 30.08.2018

(57) A method and apparatus for forming a formwork for a ribbed or waffle concrete slab is provided. The apparatus includes a rectangular block having a ledge around the base, the ledge having a dimension of half the desired width of the base ribs of the concrete slab, and a keystone connector. The keystone connector has an engagement portion configured to attach to an engagement portion on each block. In a method, the blocks are laid out so that the ledges of adjacent blocks are in contact. A keystone connector is then placed at each...

Related articles:

Issue 2019-05

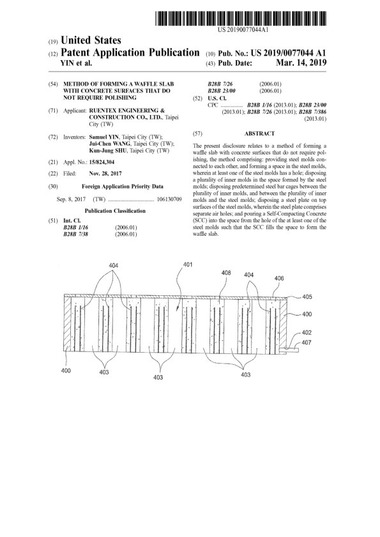

Method forming a waffle slab with concrete surfaces that do not require polishing
