Anti-impact high-strength composite concrete prefabricated part
(10) CN117926922
(22) 07.03.2024
(43) 26.04.2024

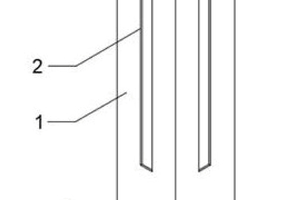

(57) The invention discloses an anti-impact high-strength composite concrete prefabricated component which comprises a concrete component body, connecting grooves, pouring holes, positioning grooves, positioning pieces, positioning holes, a bottom plate, a mounting pipe and spiral deflection angle stirrups, the connecting grooves are distributed in the side end of the concrete component body, and the pouring holes are distributed in the bottom of the concrete component body; the positioning grooves are formed in the four corners of the bottom end of the concrete member body, the positioning pieces are installed in the positioning grooves, the positioning holes are formed in the positioning pieces, the bottom plate is connected to the four positioning pieces in the concrete member body, the bottom end of the installation pipe is fixed to the middle of the bottom plate, and the spiral deflection angle stirrup is installed in the concrete member body through the installation pipe. The problems that when a high-strength concrete member is faced with fatal failure impact such as impact, the overall structure of the prefabricated member is damaged, and the mechanical strength and toughness need to be improved are solved.
(71) Shandong Zhongyan Zhongke New Material Technology Co., Ltd., CN
