Ein Verfahren und ein Dübelsystem zum Befestigen von
Isolierung in Betonelementen
Isolierung in Betonelementen
(11) EP 2 543 785 A1
(22) 28.06.2012
(43) 09.01.2013
(71) Klaus Nielsen Rådgivende Ingeniørfirma F.R.I. A/S, 2990 Nivå (DK)

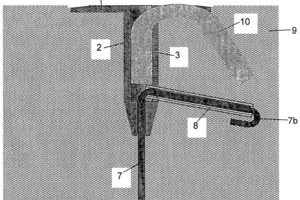

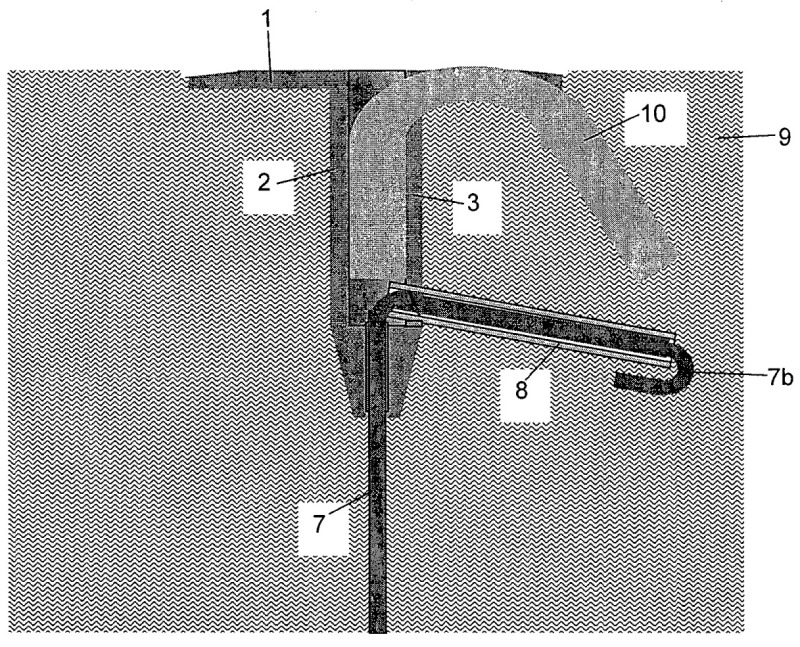

(57) A method and a dowel system for attaching insulation materials (9) in the prefabrication of insulated concrete elements, comprising a dowel head and an attachment part. The attachment part comprises a wire having an essentially rectilinear wire member (7) and a hook part, and the dowel head comprises an anchoring disc (1) and a pipe part (2) having a through bore (5,6), through which bore (5,6) the straight part of the wire member (7) is inserted in connection with the...
