Method for producing a composite element as well as composite element

(10) WO 2022/232851 A1

(22) 07.05.2021

(43) 10.11.2022

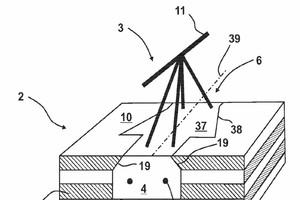

(57) The invention relates to a method for producing a composite element (1). According to the invention, in order to efficiently produce a composite element (1) having high load-bearing capacity, a first element (2) having a recess (5) is provided, whereupon a reinforcement partly protruding from the recess (5) is positioned in the recess (5), whereupon the recess (5) is filled with curable material, more particularly concrete (4), and whereupon the curable material cures in the recess (5) and thus forms a second element (3), so that the reinforcement is interlockingly connected to the first element (2) by means of the cured material. The invention also relates to a composite element (1), comprising a first element (2) having a recess (5) and at least a second element (3), which is connected to the first element (2) and comprises a cured material and a reinforcement.

(71) Terki, Hans-Ulrich [AT/AT]; Blumenweg 2, 9560 Feldkirchen (AT)
