Form element, arrangement of the form element and method for forming at least one part of a formwork for a concrete part with the form element

(10) US 2022/0325540 A1

(22) 05.06.2020

(43) 13.10.2022

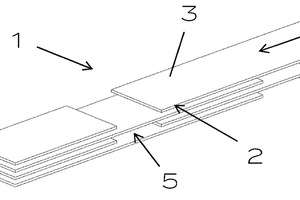

(57) The invention relates to a form element (1), an arrangement comprising such a form element (1) and a method for forming at least part of a formwork for a concrete part using this form element (1), wherein the form element (1) is flexibly three-dimensionally deformable in its first state, and wherein the form element (1), is stiffened and solidified in its second state, in particular in a deformed position of the form element (1), wherein the form element (1) comprises at least two flexible layers (2), which are arranged superimposed in a planar manner, and wherein the layers (2) are connected to each other, in particular reversibly, in the second state to solidify the form element (1).

(71) Victor Said Najjar, Wien (AT); General Laser Tochev & Tochev OG, Wien (AT)
