Special precast concrete elements for flood protection

The city of Bergisch Gladbach in Germany arms itself against the next flood with the large-scale ­project “Strunde hoch vier” Matthias Borkenfeld, Tuttahs & Meyer
The city of Bergisch Gladbach in Germany arms itself against the next flood with the large-scale ­project “Strunde hoch vier”
Matthias Borkenfeld, Tuttahs & Meyer

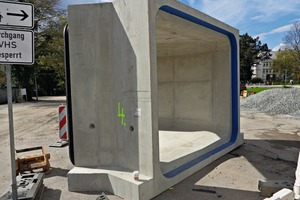

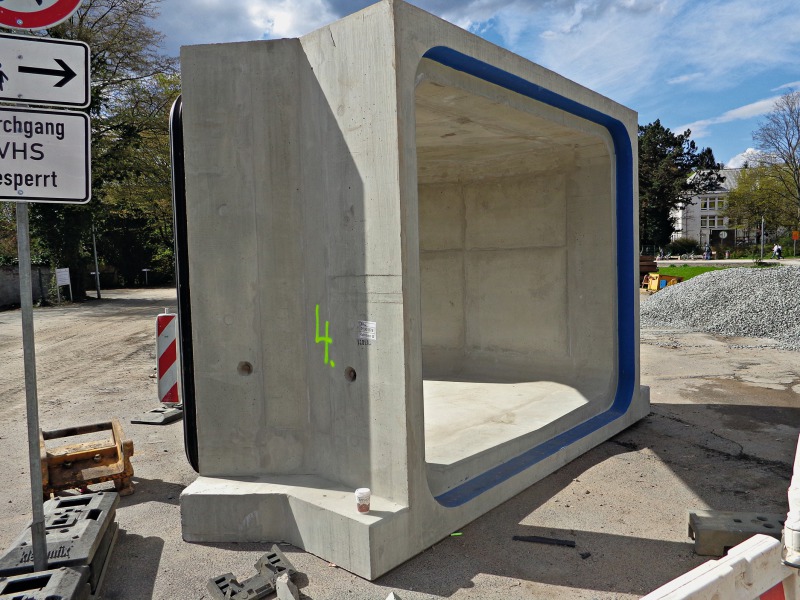

Many different reinforced-concrete box culverts of FBS quality from the new sewerage network along the Strunde in Bergisch Gladbach. The construction element shown here enables a change of drainage direction Matthias Borkenfeld, Tuttahs & Meyer
Many different reinforced-concrete box culverts of FBS quality from the new sewerage network along the Strunde in Bergisch Gladbach. The construction element shown here enables a change of drainage direction
Matthias Borkenfeld, Tuttahs & Meyer

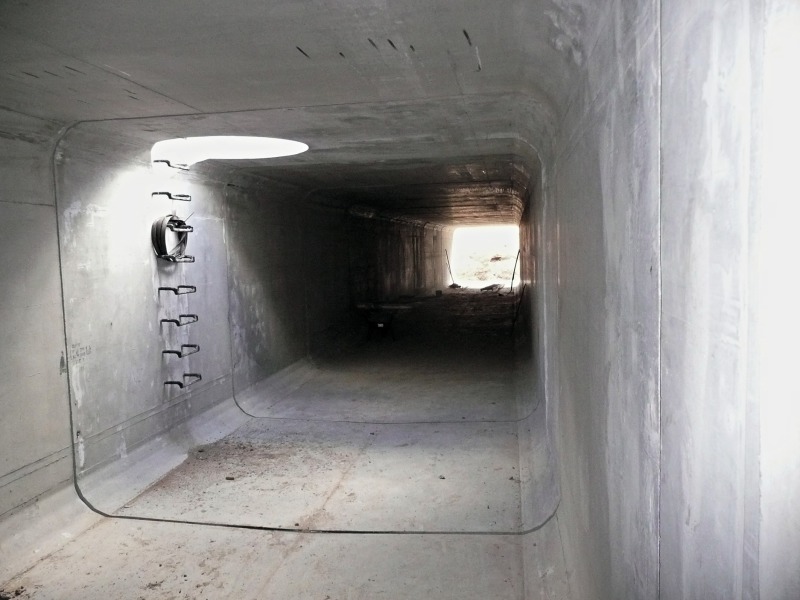

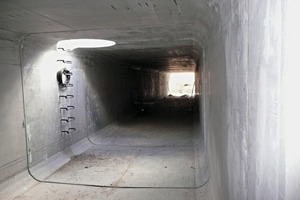

A slight gradient towards the center of the profile ensures optimal ­hydraulic characteristics in the sewerage Matthias Borkenfeld, Tuttahs & Meyer
A slight gradient towards the center of the profile ensures optimal ­hydraulic characteristics in the sewerage
Matthias Borkenfeld, Tuttahs & Meyer

Many citizens of the city of Bergisch-Gladbach in Germany do not like to think back on the flood disaster of 2012. Since the probability of another flood is increasing due to climate change, those responsible in this city, near Cologne, have decided on implementing comprehensive flood protection measures. Since October 2015, the city has been working on completing the project “Strunde hoch vier,” giving the Strunde top priority. The Strunde is a tributary of the Rhine and flows today on the right side of the Rhine into the municipal sewerage system of the city of Cologne. In addition to a...

Find out more in

BFT 05/2017

Find out more in

BFT 05/2017

Ressort:  PRECAST ELEMENT PRODUCTION | FERTIGTEILHERSTELLUNG
subscription Content
