Method for manufacturing
a paving element

(10) EP 3 900 904 Al

(22) 12.04.2021

(43) 27.10.2021

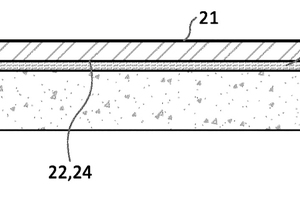

(57) The present invention relates to a method for manufacturing a composite paving element, comprising a concrete body (45) and a tile body (20) adhered thereto. The tile body is placed in a mould (10-13), wherein a visible side (21) of the tile body (20) is directed toward the mould bottom. An adhesive layer (35) is arranged on the back side (22) of the tile body. The mould is then filled with a concrete mortar (40) and the concrete mortar is compacted into the concrete body (45). The adhesive
layer is provided in an inner area on the back side of the tile body and leaves clear a peripheral area which ex­tends therearound. The concrete body extends over the peripheral area and the concrete mortar is compacted into the concrete body at a pressure of more than 8 khPatons/m2), particularly e of between about 10 and 12 khPa ...

(71) Excluton B.V. 6651 KD Druten (NL)

x

Related articles:

Issue 2023-02

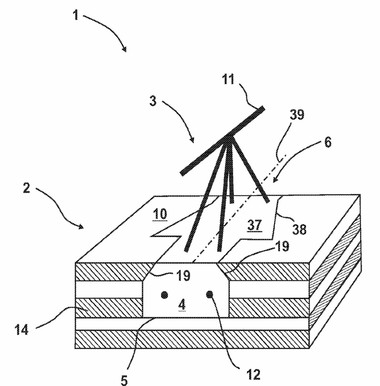

Method for producing a composite element as well as composite element

(10) WO 2022/232851 A1 (22) 07.05.2021 (43) 10.11.2022 (57) The invention relates to a method for producing a composite element (1). According to the invention, in order to efficiently produce a...

more
Issue 2017-03

Method for manufacturing a layered tile and a product obtained with said method

(11) EP 3 112 331 Al (22) 29.06.2015 (43) 04.01.2017 (57) The present invention relates to a method manufacturing a layered tile comprising a mutually con­nected ceramic tile and a concrete body,...

more
Issue 2022-06

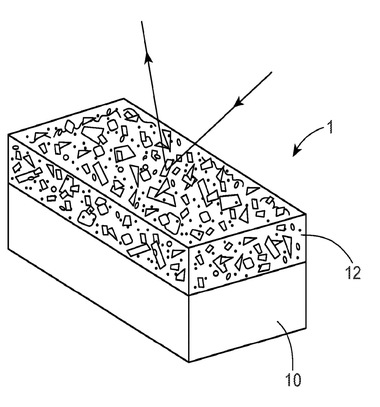

Paving block with improved illumination

(10) US 2022/0074146 Al (22) 18.11.2021 (43) 10.03.2022 (57) A method of manufacturing a paving block with embedded photoluminescent material, comprising the steps of mixing sand, aggregate, water,...

more
Issue 2021-04

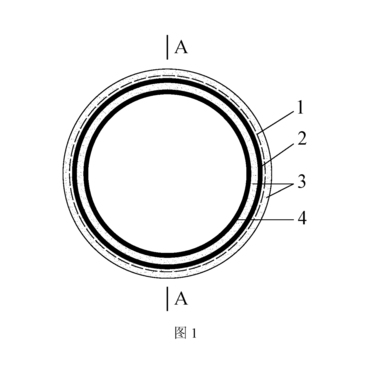

Textile-reinforced concrete-steel pipe-frp Composite pipe and manufacturing method therefor

(10) WO 2021/003861 A1 (22) 08.10.2019 (43) 14.01.2021 (57) A textile-reinforced concrete-steel pipe-FRP composite pipe, comprising an FRP round pipe (4), a thin-wall steel pipe (2), and...

more
Issue 2020-11

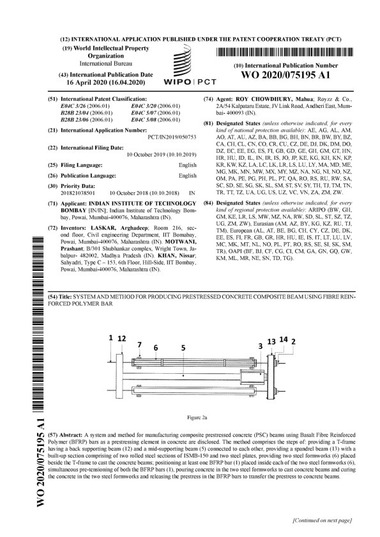

System and method for producing prestressed concrete composite beam ...
