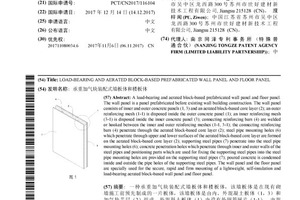

Load-bearing and aerated block-based prefabricated wall panel and floor panel
(10) WO 2019/085176 A1
(22) 14.12.2017
(43) 09.05.2019
(57) A load bearing and aerated block-based prefabricated wall panel and floor panel. The wall panel is a panel prefabricated before existing wall building construction. The wall panel consists of inner and outer concrete panels (1, 3) and an aerated block-based core layer (2); an outer reinforcing mesh (1-1) is disposed inside the outer concrete panel (1); an inner reinforcing mesh (3-1) is disposed inside the inner concrete panel (3); connecting reinforcing bars (4) are welded or hooked between the inner and outer reinforcing meshes (1-1,...
