Lifting anchors

(10) US 2015/0075090 Al

(43) Mar. 19, 2015

(73) ILLINOIS TOOL WORKS INC., Glenview, IL (US)

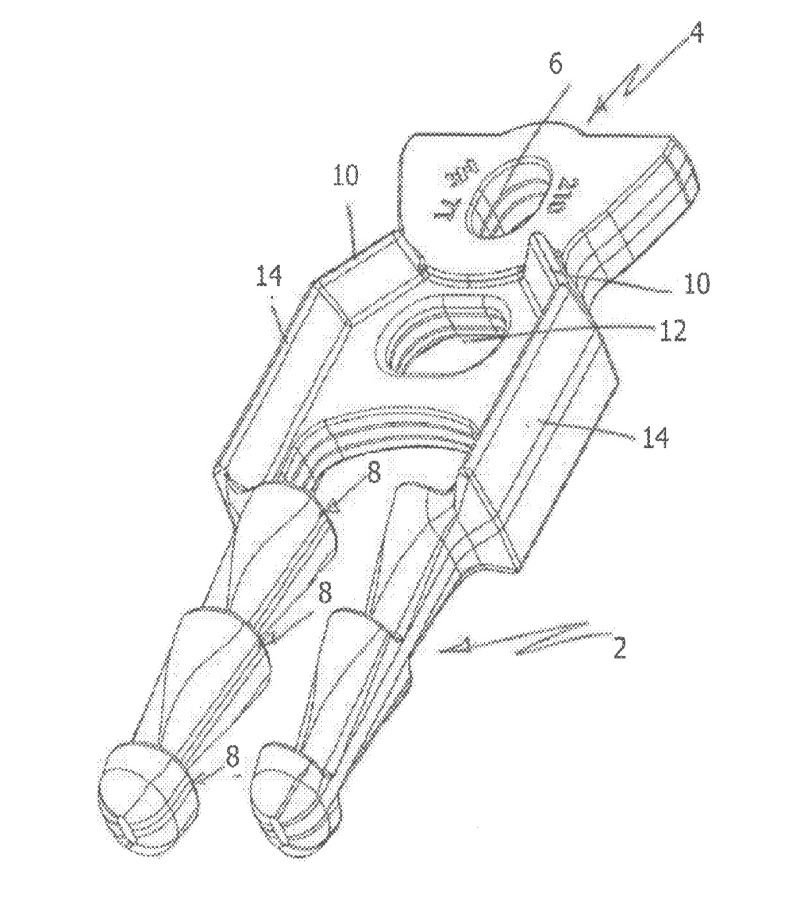

(57) An edge lift anchor for embedment into a concrete panel, the anchor having a head of generally plate-like form for releasable attachment with lifting equipment, and at least one leg extending from the head, for locking into the surrounding concrete, the head having an eye for receiving a locking bolt of a lifting clutch in the form of a ring clutch, the head having an upper edge engageable by the body of the ring clutch when the clutch body is inclined at the commencement of lifting a cast panel from...
