Casting mold for an annular concrete module, method for producing a concrete module using said casting mold ...

(10) WO 2019/234488 A2

(22) 29.05.2019

(43) 12.12.2019

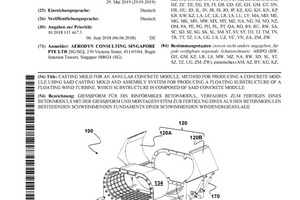

(57) The invention relates to a casting mold (100) for producing an annular concrete module (10), comprising a matrix (110, 120) and a core (134), characterized in that the matrix (110, 120) is formed by a lower half-shell (110) and a respective upper mold element (120A, 120B) hingedly connected to one side of the lower half-shell (110), a wall (130, 140) at each side of the matrix (110, 120), which delimits the cavity formed by the matrix (110, 120) and the core (134), and the core (134) can be releasably connected to at least one of the two walls (130, 140) for the purpose of positioning inside the matrix (110, 120).

(71) AERODYN CONSULTING SINGAPORE PTE LTD [SG/SG]; 230 Victoria Street, #11-03/04, Bugis Junction Towers, Singapur 188024 (SG)

(84)Bestimmungsstaaten (soweit nicht anders angegeben, fur jede verfugbare regionale Schutzrechtsart): ARIPO (BW, GH, GM, KE, LR, LS, MW, MZ, NA, RW, SD, SL, ST, SZ, TZ, UG, ZM, ZW), eurasisches (AM, AZ, BY, KG, KZ.
