Baustein und Verfahren

(10) US 019/0257054 Al

(22) 18.10.2016

(43) 22.08.2019

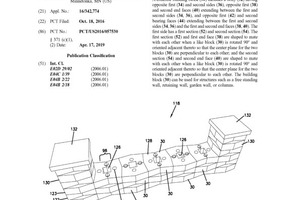

(57) A concrete building block (30) includes a body (32) having opposite first (34) and second sides (36), opposite first (38) and second end faces (40) extending between the first and second sides (34, 36), and opposite first (42) and second bearing faces (44) extending between the first and second sides (34, 36) and the first and second end faces (38, 40). The first side has a first section (52) and second section (54). The first section (52) and first end face (38) are shaped to mate with each other when a like block (30) is rotated 90° and oriented adjacent thereto so that the center plane for the two blocks (30) are perpendicular to each other; and the second section (54) and second end face (40) are shaped to mate with each other when a like block (30) is rotated 90° and oriented adjacent thereto so that the center plane for the two blocks (30) are perpendicular to each other. The building block (30) can be used for structures such as a free standing wall, retaining wall, garden wall, or columns.
(71) ANCHOR WALL SYSTEMS, INC., Minnetonka, MN (US)
(73) (71)ANCHOR WALL SYSTEMS, INC., Minnetonka, MN (US)

x

Related articles:

Issue 12/2017

Concrete wall block

(11) AU2017228669 (A1) (57) A stacked concrete wall is disclosed comprising: a plurality of stacked concrete wall blocks, each wall block including a body having a front portion and a rear portion,...

more
Issue 09/2013

Concrete wall block

(10) WO 2012/083457 A1 (22) 21.12.2011 (43) 28.06.2012 (71) LES MATERIAUX DE CONSTRUCTION OLDCASTLE CANADA, INC. [CA/CA]; 44 Chipmm1 Hill, lOiemme etage, St-Jolm, New Bnmswick E2L 4S6 (CA). (57)  A...

more
Issue 05/2019

Building block comprising insulating inserts

(10) 9,GB 2566329 (13) A (22) 12.09.2017 (57) The building block 11 for a wall comprises a concrete body 10 having one or more insulating inserts 1 arranged within the body, and an insulating panel 5,...

more
Issue 04/2020

Front face of a concrete wall block

(10) US D875,274 S (22) 30.05.2018 (45) 11.02.2020 (57) We claim the ornamental design for a front face of a concrete wall block, as shown and described. DESCRIPTION FIG. 1 is a front view of a front...

more

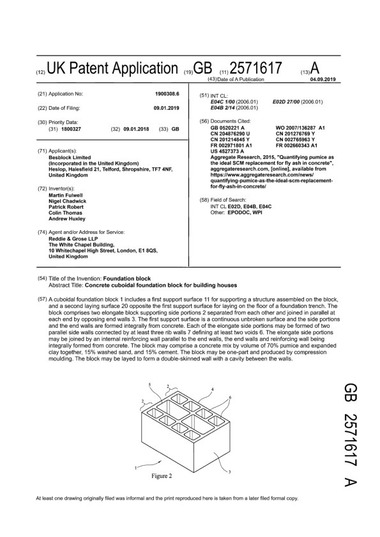

Issue 11/2019
