An alternative to reinforced concrete

Use of prestressed concrete in floor slab production

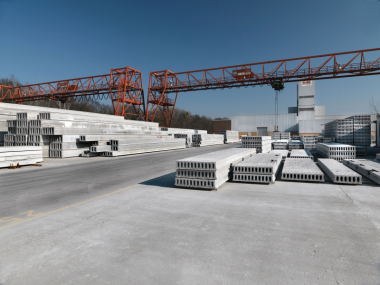

Reinforced-concrete floor slabs are regarded in Germany as the classic variety of floor constructions for new structures. All reinforced-concrete floor constructions have one thing in common: whether partly precast or in-situ concrete, at least 80% of the floors must be cast in place. In addition, complex support systems are required during the construction phase on site. Precast prestressed floor slabs from Echo-Elbe need no supports – all the way from installation on site until the building is taken into service.

Precast prestressed floors slabs from Echo-Elbe consist of a lower and upper concrete layer connected to each other via the webs.

The prestressed strands and/or wires in sizes 5.7, 9.3 mm and 12.5 mm, are located in the lower webs. The structural design of the precast prestressed floors is completed in the in-plant engineering office in accordance with their spans and loads in cross-section, strand arrangement and floor thicknesses. Compared to conventional reinforced-concrete floors, precast prestressed floors are characterized by approx. 30% savings in weight, permitting materials savings in...
