Automatic production equipment for concrete bricks

(10) CN117962110

(22) 28.03.2024

(43) 03.05.2024

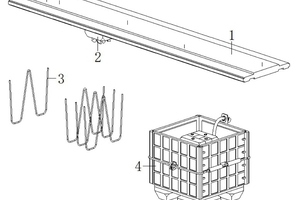

(57) The invention belongs to the field of concrete brick production, and particularly relates to concrete brick automatic production equipment which comprises a forming mold, a guide rail is arranged above the forming mold, a movable hoisting module is connected to the bottom of the guide rail, a plurality of reinforcing steel bars are arranged below the hoisting module, and the reinforcing steel bars are arranged on the guide rail. A bundling assembly is arranged on the outer side of the forming mold and used for controlling opening and closing of the forming mold, a cleaning assembly is arranged on the inner side of the forming mold, after the brick is formed, two annular structures can be reserved at the top of the brick in cooperation with the shape arrangement of a reinforcing bar, and therefore the hoisting module can hoist the brick outwards, and the brick can be conveniently cleaned. When the large concrete bricks are lifted out, the collecting assembly is opened, so that the forming mold is opened outwards to assist the transferring work of finished products, through the arrangement, the automatic production process of the large concrete bricks is achieved, the whole process is easy to operate, all links are matched with one another, and the concrete bricks can be effectively produced.

(71) Xinghua DiaoyuXiangsheng Building Material Factory, CN
