Module prefabricated slab manufacturing mold for magnetic suspension rail transit
(10) CN119141672
(22) 21.11.2024; (43) 17.12.2024

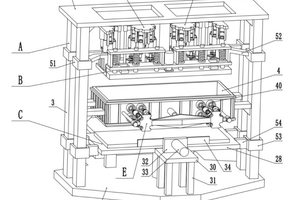

(57) The invention discloses a manufacturing mold for a module prefabricated slab for magnetic suspension rail transit. The manufacturing mold comprises a mold support, a mold cavity, a mold upper cover structure, a mold lower cover structure and an embedded part inserting mechanism. The mold support is composed of a bottom plate, a top plate and third supporting rods, a mold cavity is fixed between the third supporting rods, a mold upper cover structure is arranged above the mold cavity, a mold lower cover structure is arranged below the mold cavity, and the side wall of the mold cavity and the mold upper cover structure are each provided with an embedded part inserting mechanism; by means of the mold upper cover structure, in the manufacturing process of the module prefabricated slab, sufficient extrusion is formed, concrete in a mold cavity is more compact, and uneven distribution of the concrete in the mold cavity and generation of air bubbles in the mold cavity are effectively avoided; and meanwhile, through the arrangement ...
(71) Shanxi Second Construction Group Co., Ltd.; Shanxi Construction Investment Group Co., Ltd., CN
