Prefabricated thermal insulating composite panel, assembly thereof, molded panel and concrete slab comprising same, method for prefabricating same

(10) WO 2012/069016 A1
(22) 25.11.2011
(43) 31.05.2012
(71) OWENS CORNING INTELLECTUAL CAPITAL, LLC [US/US]; Ohio 43659 (US)

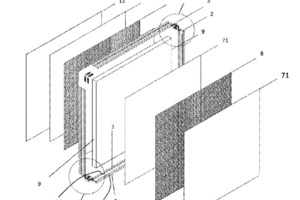

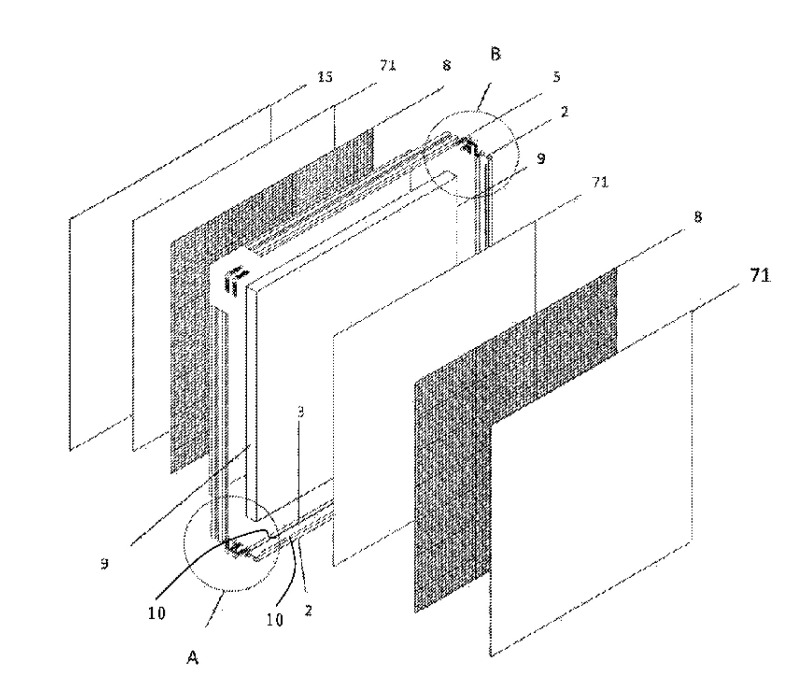

(57) Disclosed are a prefabricated thermal insulating composite panel (1), an assembly thereof, a molded panel and a concrete slab comprising the same, and a method and a mold profile (50) for prefabricating the same. The prefabricated composite thermal insulating panel (1) comprises: two reinforcing protective layers (7) of an inorganic noncombustible material, a core (9) formed by a thermal insulating material, a frame (2) with installation grooves (13) surrounding the...
