Balcony connection according to standard

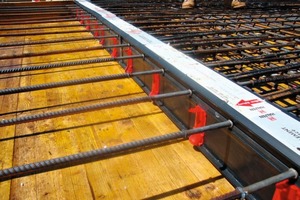

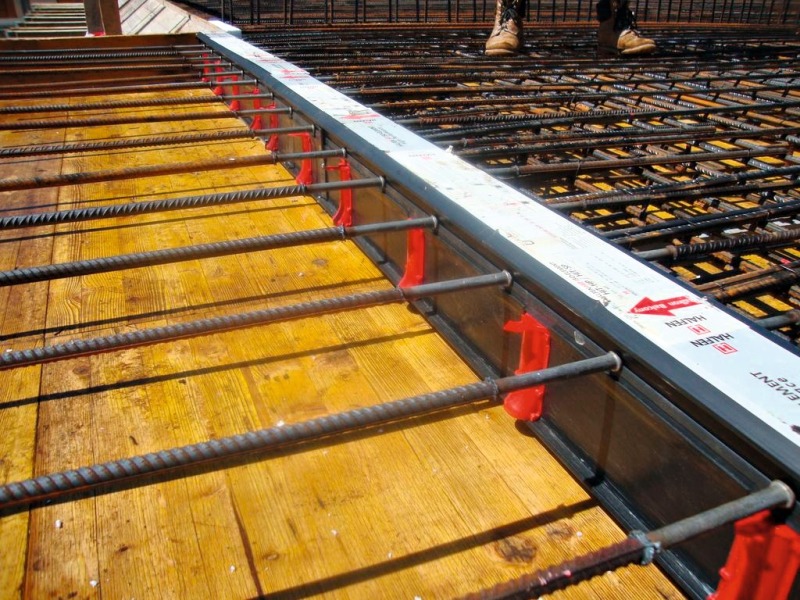

New Halfen HIT HP

Now, the new Halfen HIT HP (high performance) bal­cony connection provides even more advantages: a high degree of efficiency, the prevention of condensation water and mold formation, and the reduction of heating costs as well as CO2 emissions.

As standard, all new HIP HP ISO elements are classified according to the European fire resistance rating for load-bearing structural components with and without room closure REI 120 (F120-AB). At a slab thickness of 16 cm or more the type-approved elements are able to transfer shear forces of up to 160 kN/m. The state-of-the-art and newly developed compression shear bearing made of a fiber-­reinforced high-performance mortar enables the HAFEN HIT HP to achieve a remarkably improved thermal insulation. As shear bars and installation bars were eliminated, the installation is now much easier....

Related articles:

Issue 2014-05 Halfen

New slab connection with ETA

Slab connection elements are structural heat-insulating elements providing for the thermal separation of reinforced concrete components. In practice they are used to prevent mold growth, to ensure...

Issue 2022-06

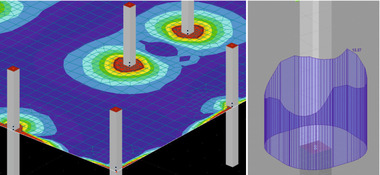

Experimental investigations on punching shear of flat slabs made of carbon-reinforced concrete

So far, European standards do not stipulate generally applicable verification rules for the punching shear of slabs made of carbon-reinforced concrete. In addition, regulations on the structural...

Issue 2021-11 Monday, 15th November ? Innovation workshop (6)

New European Assesment for punching shear reinforcement

Flat slabs made of reinforced concrete are supported directly on columns. The total height of the slab construction is reduced and the formwork effort is simplified because beams are done away with....

Issue 2017-02 Flat slabs and foundations

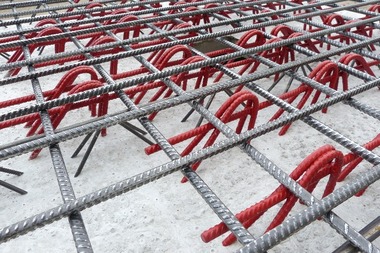

New punching shear reinforcement systems
