Prefabricated structure and prefabricated module
(10) EP4183946A1
(22) 18.11.2022
(43) 24.05.2023

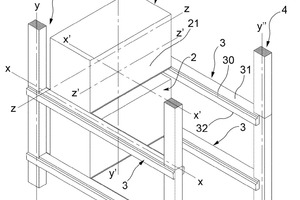

(57) A prefabricated structure (1) comprising at least two prefabricated beams (3) each mainly extending in a first substantially horizontal beam direction (X-X), at least one prefabricated module (2) comprising a base (21) at least partially made of concrete or wood or combinations thereof, having a treadable surface defined by a first module direction (X‘-X‘) and a second module direction (Z‘-Z‘) that are substantially horizontal and orthogonal to each other. The prefabricated module (2) comprises a ceiling wall (22) and a module side wall (25) extending in height along a third substantially vertical module direction (Y‘-Y‘) orthogonal to said first and second module directions (X‘-X‘, Z‘-Z‘) between said base (21) and said ceiling wall (22), wherein said prefabricated module (2) rests on said prefabricated beams (3). A prefabricated module (2) suitable for engaging the prefabricated beams (3) in a prefabricated structure (1), so as to unload the load thereof on said prefabricated beams (3).
(71) Spatti Ingegneria S.r.l. (IT)
