Pipe support element for installing utility pipes in a concrete element

Figure: Espacenet

(10) CH722552A2

(22) February 7, 2025

(43) August 14, 2026

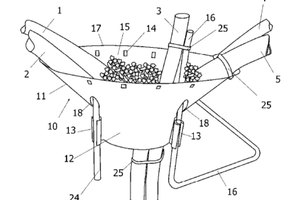

(57) A pipe support element (10) for laying utility pipes in a concrete element comprises a hollow body (15) for receiving at least one pipe. The hollow body is configured as a funnel-shaped hollow body designed to accommodate the at least one pipe as well as a spacer. The spacer may comprise a filler material.

(71) Spotbox Elektrotechnik AG, Kantonsstrasse 91A, 6234 Triengen LU (CH)
