Sono-Mix moisture probe for face-concrete mixer

An increasing number of concrete block manufacturers are now specializing in colored premium products. Masa offers the S 350/500 concrete mixer especially for the manufacture of face concrete.

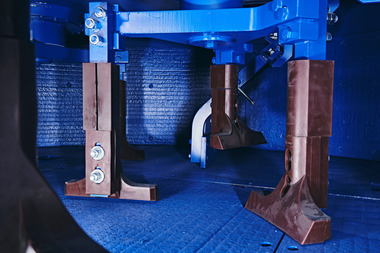

The structure of the fresh concrete mix produced by the Masa S 350/500 is flawless, homogenous, and agglomerate-free. This is the result of the combination of a rotating mixer trough with an inclination of 20° with a stationary agitator.

But there are more features of the Masa S 350/500 that add up to top ratings. The agitators are driven by wear-resistant toothed belts. The drive motor for the mixer trough is also fitted with frequency converters; a frequency-controlled drive for the agitator is optionally available. The trough is emptied through a pneumatically controlled discharge opening. The mixer trough is fitted with a stainless steel floor and side plates that can be exchanged. Passive mixer dust removal “Airbag” is standard equipment, and an active mixer “Dust Collector” dedusting unit is optionally available. Extra inlet feeds for color and other additions to the concrete can be easily implemented.

Continuous flow of materials and long service life

The Masa S 350/500 is fitted with a scraper for cleaning the side wall of the mixer. The Sono-Mix Mini integrated in the scraper is based on state-of-the art Trime radar technology and measures the moisture content of the concrete mix. This in particular ensures a continuous flow of materials and shows that the probe is optimally positioned.

Thanks to the small dimensions of the unit, no material, or only an absolute minimum, adheres to the probe. The robust special ceramics at the probe head moreover ensures a long service life.


Related articles:

Issue 06/2023

Concrete mixers as milestones for high-quality end products

Masa is a manufacturer of efficiant and durable production plants for the building materials industry. The quality of the final products manufactured in these plants is influenced by many factors in...

Issue 05/2012

Precise moisture measurement in aggregates eliminates the mixer probe

The quality of fresh concrete is essential for stability and durability of concrete products. To fulfill the compliance with concrete recipes the precise measurement of aggregate moisture plays an...

Issue 06/2011 Moisture probes for the construction industry

Radar moisture probes

The TDR measurement principle (time-domain reflectometry, in the German-speaking area also referred to as “cable radar”) has gained increasing acceptance in industry within the last 10 years as a...

Issue 06/2015 Imko

Sono moisture measurement method for cost savings

Considerable cost savings can be achieved in the manufacture of concrete, sand-lime and clay blocks when using a novel moisture measurement method that works. According to the supplier, product...

Issue 01/2020 KNIELE

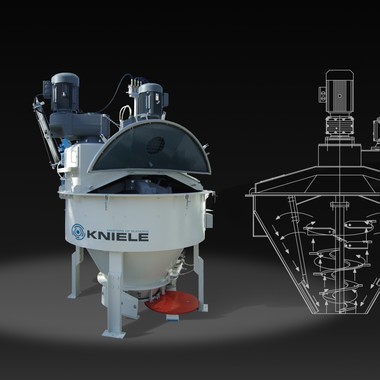

Going new ways with the KKM cone mixer
