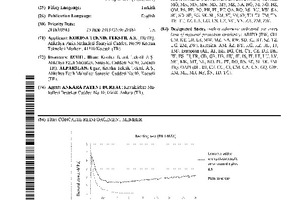

Concrete reinforcement member

(10) WO

2020/005183 A3

(22) 12.04.2019

(43) 02.01.2020

(57) The present invention is a reinforcing member manufactured from synthetic fibers suitable for reinforcing concrete comprises synthetic nylon 6.6 fibers coated with polycarboxylic ether on which no surface treatment is applied and comprising a plurality of filaments wherein the diameter of each one is in range of 20-40 microns, and which are combined such that the linear density will be in range of 140-330 tex. By means of using the reinforcement member of the present invention in the concrete, ductility is provided to the plain concrete,...
