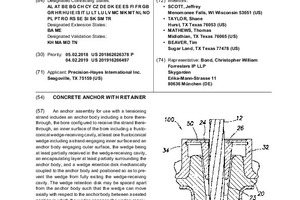

Concrete anchor with retainer
(11) EP 3 521 526 A1
(22) 05.02.2019
(43) 07.08.2019 Bulletin 2019/32
(57) An anchor assembly for use with a tensioning strand includes an anchor body including a bore therethrough, the bore configured to receive the strand therethrough, an inner surface of the bore including a frustoconical wedge-receiving cavity, at least one frustoconical wedge including a strand-engaging inner surface and an anchor body engaging outer surface, the wedge being at least partially received in the wedge-receiving cavity, an encapsulating layer at least partially surrounding the anchor body, and a wedge retention...
