Multi-anchor concrete post-tensioning system

(10) US 2023/0040105A1

(22) 18.10.2022

(43) 09.02.2023

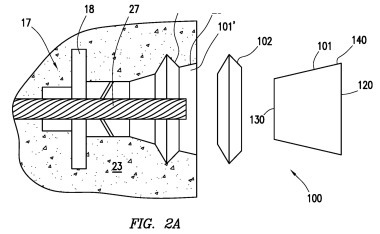

(57) A system for use with a post-tensioning concrete anchor may comprise a connector anchor including a bore therethrough, the bore including a first frustoconical portion, the connector anchor adapted to bear on the post-tensioning concrete anchor, and a coupler. The coupler may comprise a coupler body including a bore therethrough, the bore including a second frustoconical portion that is oriented oppositely to the first frustoconical portion, and a connector having a bore therethrough and configured to receive the coupler body therein, the connector adapted to mechanically engage the connector anchor such that a tensioning force can be transmitted from the coupler body to the connector anchor via the connector. A method of using the system may allow a second concrete section to be poured adjacent to a first concrete section before the first concrete section has been stressed.

(71) Sorkin Felix, Stafford/TX [US]

x

Related articles:

Issue 12/2020

Multi-anchor concrete post-tensioning system

(11) EP 3 712 342 A1 (22) 19.03.2020 (43) 23.09.2020 Bulletin 2020/39 (57) A system for use with a post-tensioning concrete anchor may comprise a connector anchor including a bore therethrough, the...

more
Issue 12/2021

Intermediate concrete anchor system with cap

(10) US 2021/0293023 Al (22) 08.01.2021 (43) 23.09.2021 (57) A method and system for forming a post-tensioned concrete slab using a post-tensioning concrete anchor. The system may comprise a connector...

more
Issue 10/2019

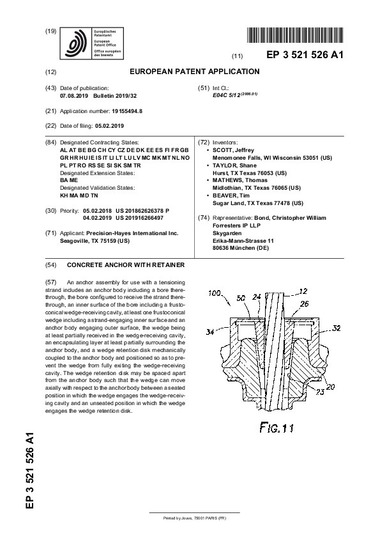

Concrete anchor with retainer
