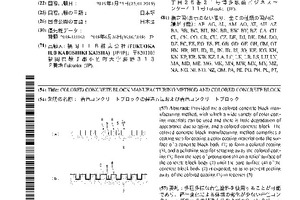

Colored concrete block manufacturing method and colored concrete block

(10) WO 2020/003570 A1

(22) 25.01.2019

(43) 02.01.2020

(57) Provided are a colored concrete block manufacturing method, with which a wide variety of color coating materials can be used and there is little degradation of appearance due to aging, and a colored concrete block. The colored concrete block manufacturing method comprises a coating step for coating a color coating material onto the sur­face of a concrete block body (2) to form a colored coating (3), and a polishing step for scraping away the colored coat­ing (3) from the tops of protrusions (6) on a relief surface of the concrete block body (2) until the bare surface (4) of the concrete block body (2) is exposed, so as to prevent peeling away of the colored coating (3) in recesses (5).


(81) : AE, AG, AL, AM, AO, AT, AU, AZ, BA, BB, BG, BH, BN, BR, BW, BY, BZ, CA, CH, CL, CN, CO, CR, CU, CZ, DE, DJ, DK, DM, DO, DZ, EC, EE, EG, ES, FI, GB, GD, GE, GH, GM, GT, HN, HR, HU, ID, IL, IN, IR, IS, JO, KE, KG, KH, KN, KP, KR, KW, KZ, LA, LC, LK, LR, LS, LU, LY, MA, MD, ME, MG, MK, MN, MW, MX, MY, MZ, NA, NG, NI, NO, NZ, OM, PA, PE, PG, PH, PL, PT


Related articles:

Issue 04-2022/2022

Construction method for underwater concrete block structure

(11) EP 3 933 114 Al (22) 19.02.2020 (43) 05.01.2022 Bulletin 2022/01 (57) A method of constructing an underwater concrete block structure includes assembling a plurality of concrete blocks into a...

Issue 04/2023

Concrete block manufacturing method and concrete block structure construction method

(10) WO2023/282498A1 (22) 21.06.2022 (43) 12.01.2023 (57) The present invention relates to a concrete block structure construction method in which a concrete column is connected to a ground concrete...

Issue 12/2022

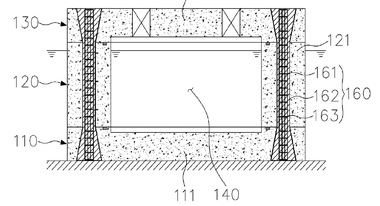

Floatable concrete block structure and method for manufacturing same
