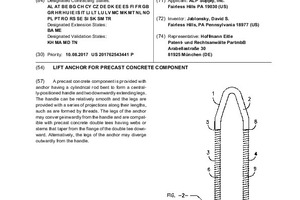

Lift anchor for precast concrete component

(10) EP 3 441 542 A1

(22) 10.08.2018

(43) 13.02.2019 Bulletin 2019/07

(57) positioned handle and two downwardly extending legs. The handle can be relatively smooth and the legs are provided with a series of projections along their lengths, such as are formed by threads. The legs of the anchor may converge inwardly from the handle and are compat­ible with precast concrete double tees having webs or stems that taper from the flange of the double tee down­ward. Alternatively, the legs of the anchor may diverge outwardly from the handle.

(71) ALP Supply, Inc. Fairless Hills PA 19030 (US)
