Concrete structure

(11) EP 3 647 499 A1

(22) 15.10.2019

(43) 06.05.2020 Bulletin 2020/19

(57) Concrete structure comprising at least one parallelepipedic concrete block (1) that includes two oppos­ing bases (1a, 1b), two first opposing lateral faces (1c, 1d) and two second opposing lateral faces (1e, 1f). The structure characterised in that one of the bases and one of the first lateral faces, contiguous to said base, includes at least two parallel recesses (2, 3) comprising first sec­tions included in the respective base and second sections included in the respective first lateral face. The sections of the recesses (2, 3) come together coinciding with a common edge of the block (1) in which the base and the first lateral face which include said recesses (2, 3) merge. The block (1) includes inlets (4, 5) located in end areas of the first lateral face which is opposed to the first lateral face that includes the second sections of the recesses (2, 3). This facilitates its handling and the joining between blocks (1).

(84) Designated Contracting States: AL AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HR HU IE IS IT LI LT LU LV MC MK MT NL NO PL PT RO RS SE SI SK SM TR, Designated Extension States: BA ME, Designated Validation States: KH MA MD TN

x

Related articles:

Issue 12/2017

Concrete wall block

(11) AU2017228669 (A1) (57) A stacked concrete wall is disclosed comprising: a plurality of stacked concrete wall blocks, each wall block including a body having a front portion and a rear portion,...

more
Issue 05/2021

Prefabricated floor element, structure comprising prefabricated floor elements...

(10) US 2021/0040739 Al (22) 12.03.2019 (43) 11.02.2021 (57) Prefabricated floor element (1) having an elongated shape wherein a longitudinal direction (X), a transversal direction (Y), a height...

more

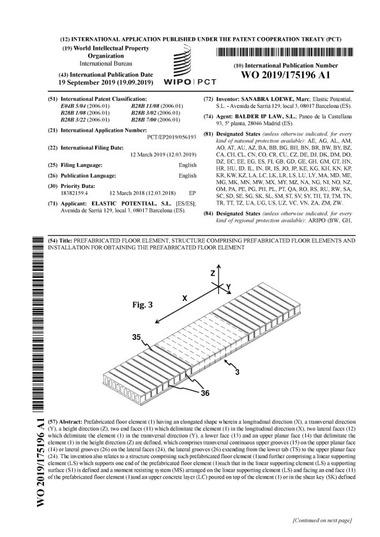

Issue 11/2019

Prefabricated floor element, structure comprising prefabricated floor elements and installation ...

(10) WO 2019/175196 A1 (22) 12.03.2019 (43) 19.09.2019 (57) Prefabricated floor element (1) having an elongated shape wherein a longitudinal direction (X), a transversal direction (Y), a height...

more

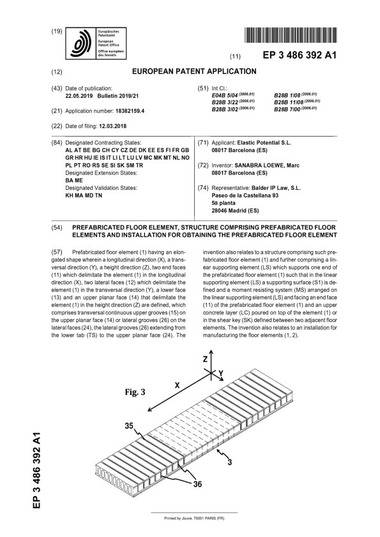

Issue 07/2019
