Concrete block unit cleaning equipment

(10) CN116871236

(22) 07.09.2023

(43) 13.10.2023

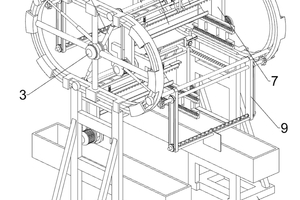

(57) The invention relates to the technical field of cleaning, in particular to concrete block unit cleaning equipment. Comprising a first support, a second support, hollow rods, water conveying pipes, first spraying pipes, a clamping mechanism and the like, the hollow rods can slide between the first support and the second support, the water conveying pipes used for being externally connected with a water pump are connected into the hollow rods, and the first spraying pipes are connected with the hollow rods and communicate with the water conveying pipes; and the clamping mechanism is used for clamping the concrete blocks, so that the concrete blocks are driven to rotate to be cleaned in all directions. According to the concrete block cleaning device, the left side and the right side of a concrete block can be cleaned by spraying water through second spraying pipes, then a hollow clamping block is driven by a double-shaft motor to move towards the inner side to clamp the concrete block, then the hollow clamping block and the concrete block are driven by a second motor to rotate, and first spraying pipes can spray water to clean the other four sides of the concrete block; operation is easy, and the cleaning effect is good.

(71) Jining Jinzhu New Building Material Technology Co., Ltd.
