Mold core for a mold for manufacture of hollow concrete elements and molding device ...
(10) DE 10 2020 204 416 A1
(22) 06.04.2020
(43) 07.10.2021

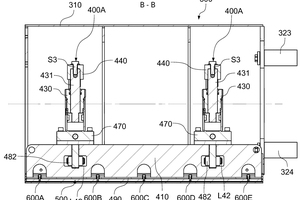

(57) Die vorliegende Erfindung betrifft einen Formkern 300 zum Einsatz an einer Formvorrichtung 1000 zur Herstellung von hohlen bzw. insbesondere rohrförmigen Betonkörpern sowie eine einen derartigen Formkern 300 umfassende Formvorrichtung 1000. Der Formkern 300 umfasst einen sich in Längsrichtung erstreckenden Kernmantel 310, der eine von einem Ende zum anderen Ende des Kernmantels 310 in Längsrichtung verlaufende streifenförmige Längsöffnung aufweist, eine Expansionsvorrichtung 400 zum Expandieren bzw. Spreizen und/oder Kontrahieren bzw. Schrumpfen des Formkerns 310, und ein die Längsöffnung des Kern-mantels 310 abdichtendes, beim Kontrahieren bzw. Schrumpfen des Formkerns sich flexibel bzw. elastisch verformendes Abdicht-element 500. An der dem Inneren des Formkerns 310 zugewandten Seite des Abdichtelements 500 sind ein oder mehrere Führungselemente 600A-600E angeordnet, wobei die Expansionsvorrichtung 400 dazu eingerichtet ist, im Übergang von einem ersten zu einem zweiten Schrumpfvorgang an den ein oder mehreren Führungselementen 600A-600E einzugreifen und im zweiten Schrumpfvorgang das Abdichtelement 500 mit an den ein oder mehreren Führungselementen 600A-600E zu führen.
(71) Schlüsselbauer, Johann, Bad Schallerbach, AT; Schlüsselbauer, Ulrich, Altenhof am Hausruck, AT
